Warning Screens for Variable Rate Drive

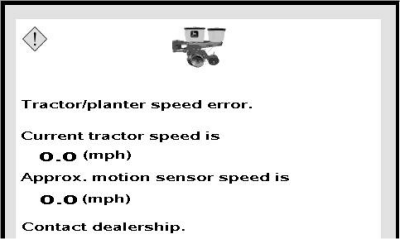

A61417
A61417-UN-19NOV07

Tractor or planter speed error.

Current tractor speed is 0.0

Approximate motion sensor speed is 0.0

Contact dealer.

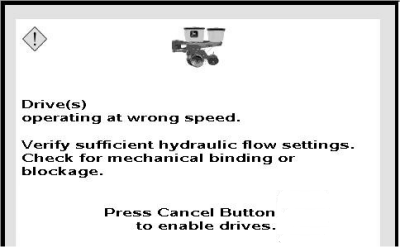

A61424
A61424-UN-24JUL08

Drives operating at wrong speed.

Verify sufficient tractor SCV hydraulic flow settings. Check for mechanical binding or blockage. Press cancel button to enable drives.

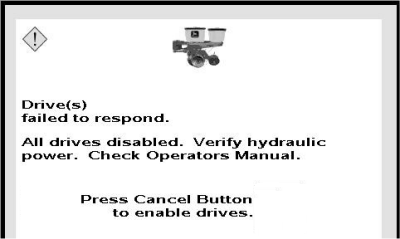

A61425
A61425-UN-24JUL08

Drives failed to respond.

All drives disabled. Verify hydraulic power and VRD sensor connections. Check operator’s manual. Press cancel button to enable drives.

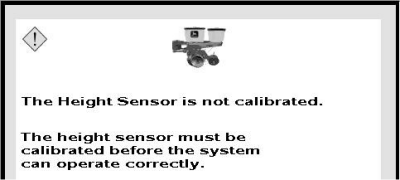

A61426
A61426-UN-19NOV07

The height sensor is not calibrated.

The height sensor must be calibrated before the system operates correctly.

Refer to height sensor calibration procedures in SETUP BASIC PLANTER CONFIGURATION section of this manual.

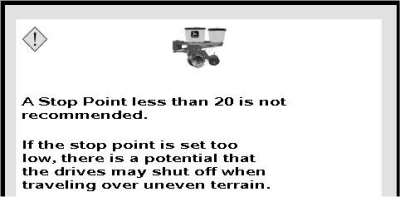

A61427
A61427-UN-19NOV07

A stop point less than 20 is not recommended.

If the stop point is set too low, there is potential for the drives to shut off when traveling over uneven terrain.

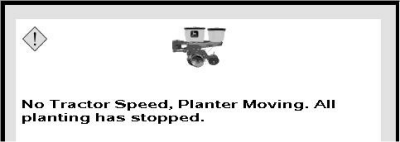

A61428
A61428-UN-19NOV07

No tractor speed and planter moving. All planting has stopped.

Verify ground speed sensor status.

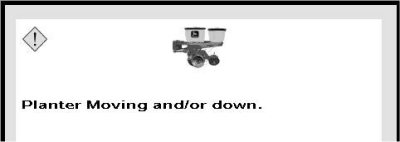

A61429
A61429-UN-19NOV07

Planter moving. Planter down.

Warning appears when using "Rotate Seed Meter" feature which requires planter, stopped and raised. Stop tractor and planter movement then raise the planter.

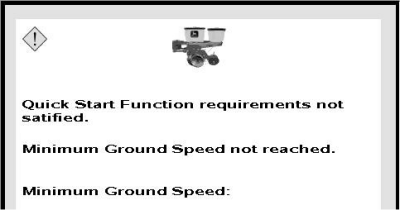

A61430
A61430-UN-19NOV07

Quick start function requirements not satisfied.

Minimum ground speed not reached.

Increase or verify tractor speed.

OUO6064,0000209-19-20100721
