Row Clutches Self Test

A59325
A59325-UN-19FEB07

Menu

A59551
A59551-UN-08MAR07

Planter Button

A59567
A59567-UN-08MAR07

Diagnostic Softkey

Use this to identify the operational row clutches detected by the monitor.

  1. Select Menu >> Planter button >> Diagnostics softkey >> Tests tab.

  2. Select Row Clutches Self Test from drop down box to see status of each row clutch.

  3. Select perform self test button and system will perform a self test on row clutches.

Screen Area Information

Planter Diagnostics - Planter Diagnostics
Tests - Tests
Row Clutches Self Test - Row Clutches Self Test
Perform Self Test - Perform Self Test

NOTE:

A63777
A63777-UN-10NOV08

Under the diagnostic tab, the perform Self-test icon does not appear, unless planter is raised over height set point.

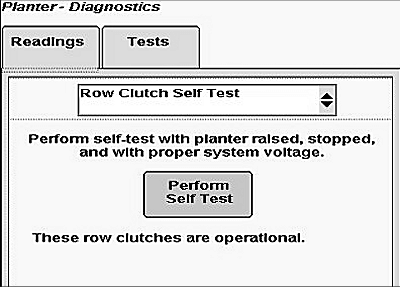

Row Clutch Diagnostic Self-test During Diagnostics.

Perform self-test with planter raised over height set point, stopped, and with proper system voltage.

After pressing self-test button, screen displays “These row clutches are operational”, followed by a list.
