6000 Series Tractors Without Power Beyond—Single Motor

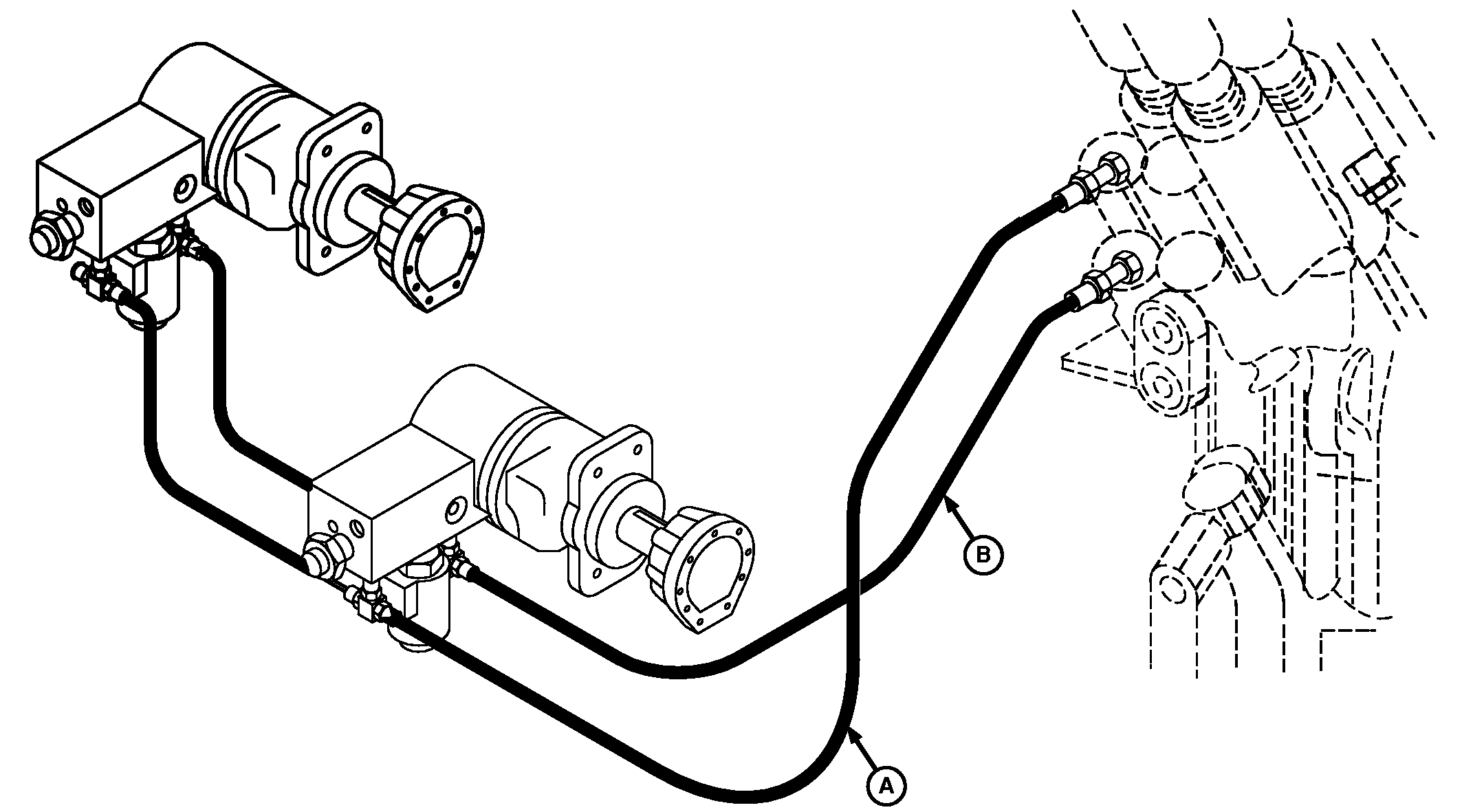

  1. A47212
    A47212-UN-26MAR01

    A - Variable Drive Pressure Hose

    B - Variable Drive Return Hose

    Attach variable drive pressure hose (A) from variable rate motor to top (cylinder retract) port of SCV.


  2. Attach variable drive return hose (B) from variable rate motor to bottom (cylinder extend) port of SCV.

OUO6074,0000586-19-20020809
