6000 Series Tractors Without Power Beyond—Dual Motor

  1. A47213

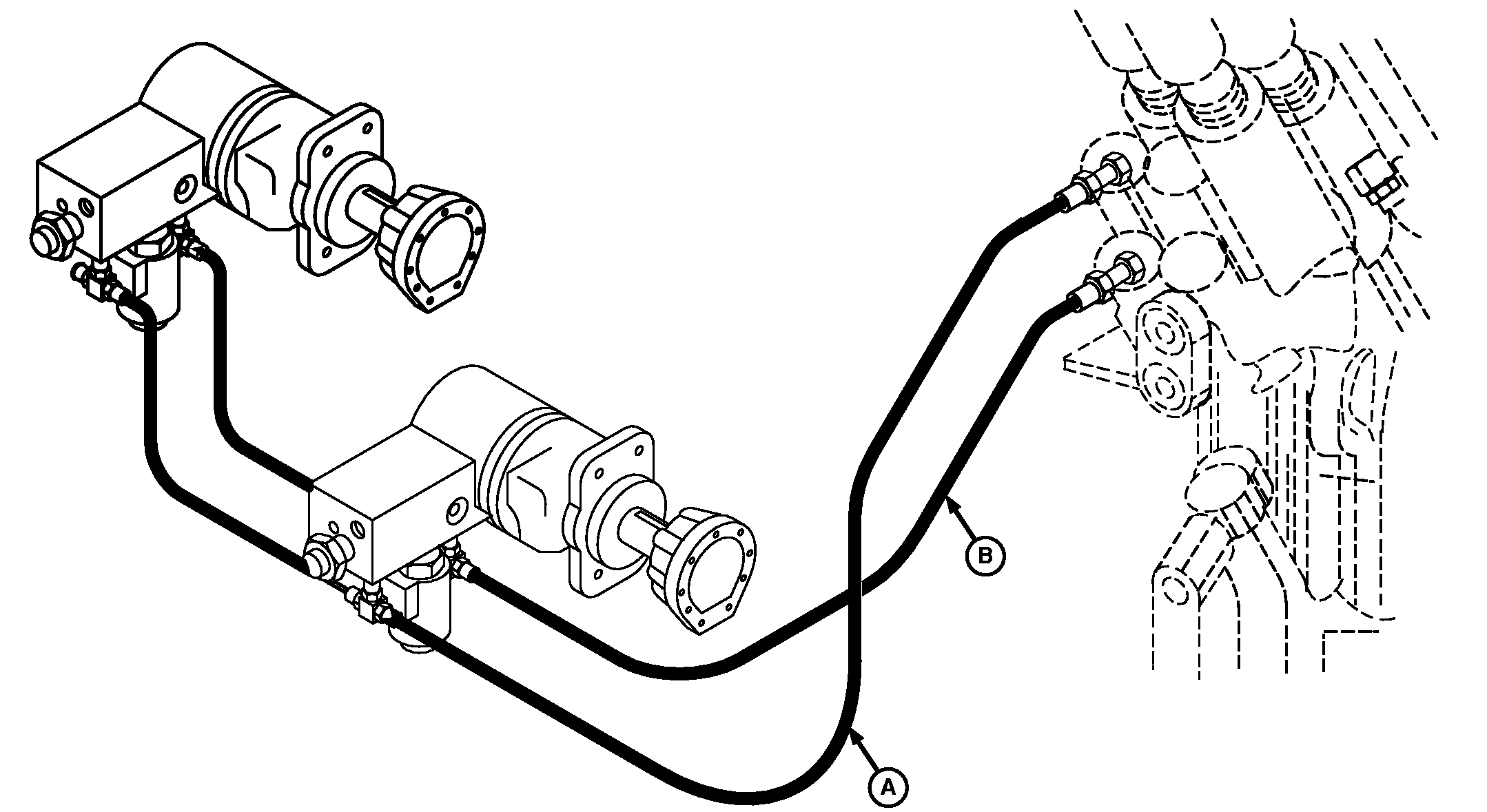

    A47213-UN-26MAR01

    A - Variable Drive Pressure Hose

    B - Variable Drive Return Hose

    Attach pressure hose (A) from variable rate motor to top (cylinder retract) port of SCV.


  2. Attach return hose (B) from variable rate motor to bottom (cylinder extend) port of SCV.

OUO6074,0000587-19-20020809
