6000 Series Tractors With Power Beyond Load Sense—Dual Motor

1.

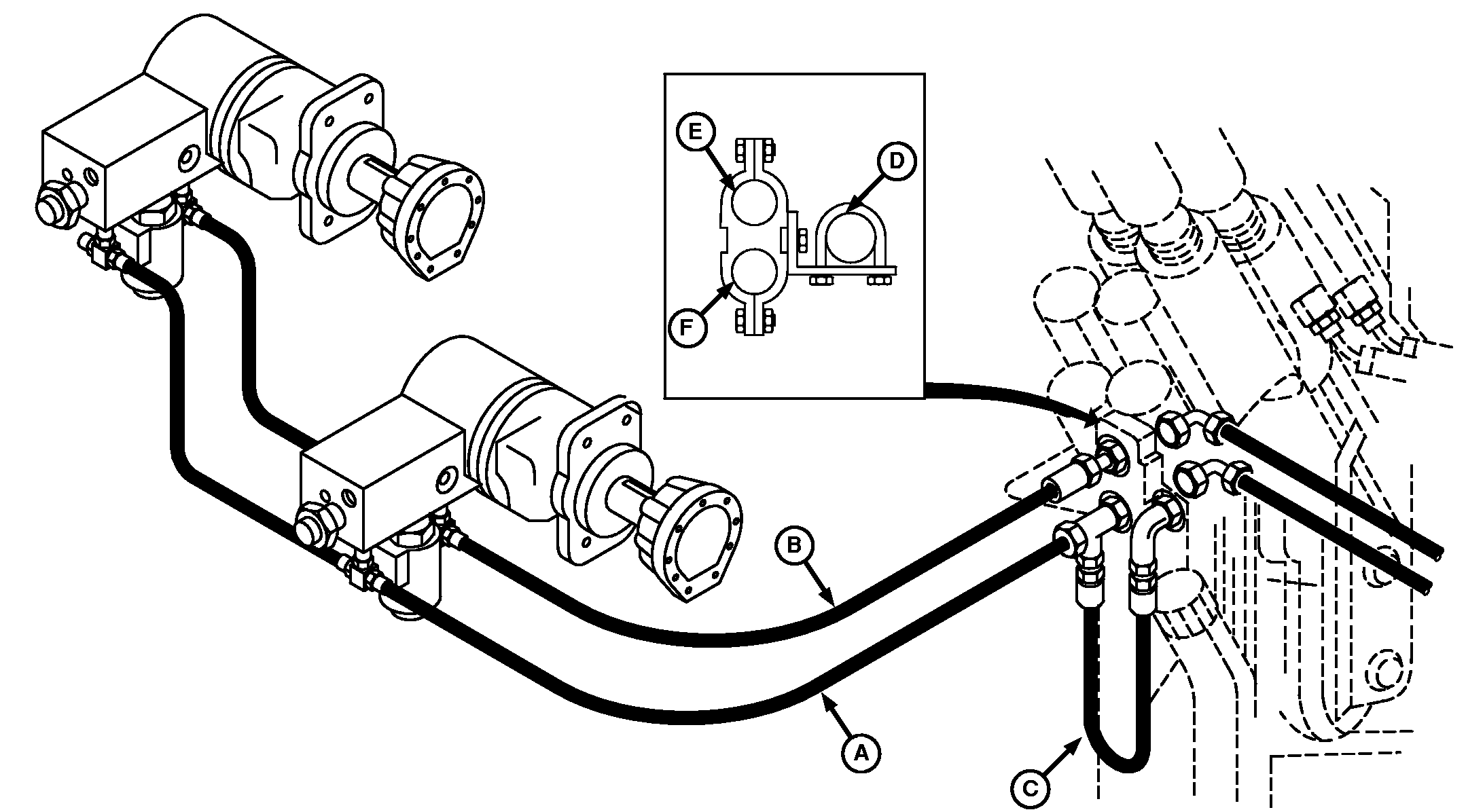

   A47211-UN-26MAR01

   A - Variable Drive Pressure Hose

   B - Variable Drive Return Hose

   C - Jumper Hose

   D - Power Beyond Load Sensing Port

   E - Power Beyond Return Port

   F - Power Beyond Pressure Port

   Attach variable drive pressure hose (A) and tee fitting to power beyond pressure port (F).

---




2. Attach variable drive return hose (B) to power beyond return port (E).

3. Attach jumper hose (C) to power beyond load sensing port (D) and pressure hose tee fitting.
