7000, 8000, 9000 Series Tractors Without Power Beyond—Multiple Motor

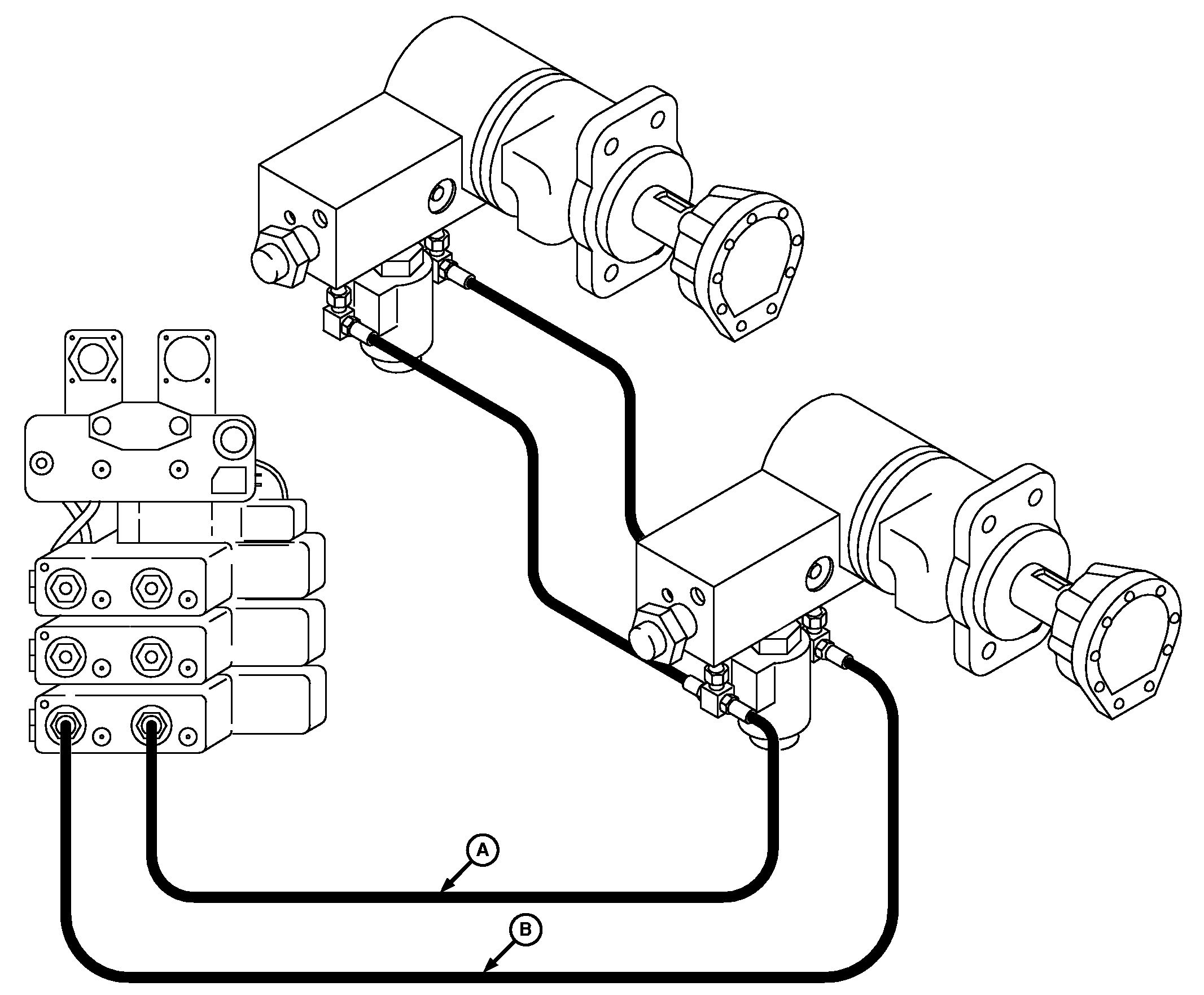

  1. A46896
    A46896-UN-14NOV00

    A - Variable Drive Pressure Hose

    B - Variable Drive Return Hose

    Attach pressure hose (A) from variable rate motor to right-hand (cylinder retract) side of SCV.


  2. Attach return hose (B) from variable rate motor to left-hand (cylinder extend) side of SCV.

OUO6074,000058B-19-20020809
