7000 Series Tractors With Power Beyond Load Sense—Single Motor

1. IMPORTANT: Power beyond can not be used on 7000 series when attached to a 1770NT with CCS, because CCS fan is routed to motor return. Do not “T” other functions to CCS fan hoses or motor seal damage will occur.


   A46897-UN-14NOV00

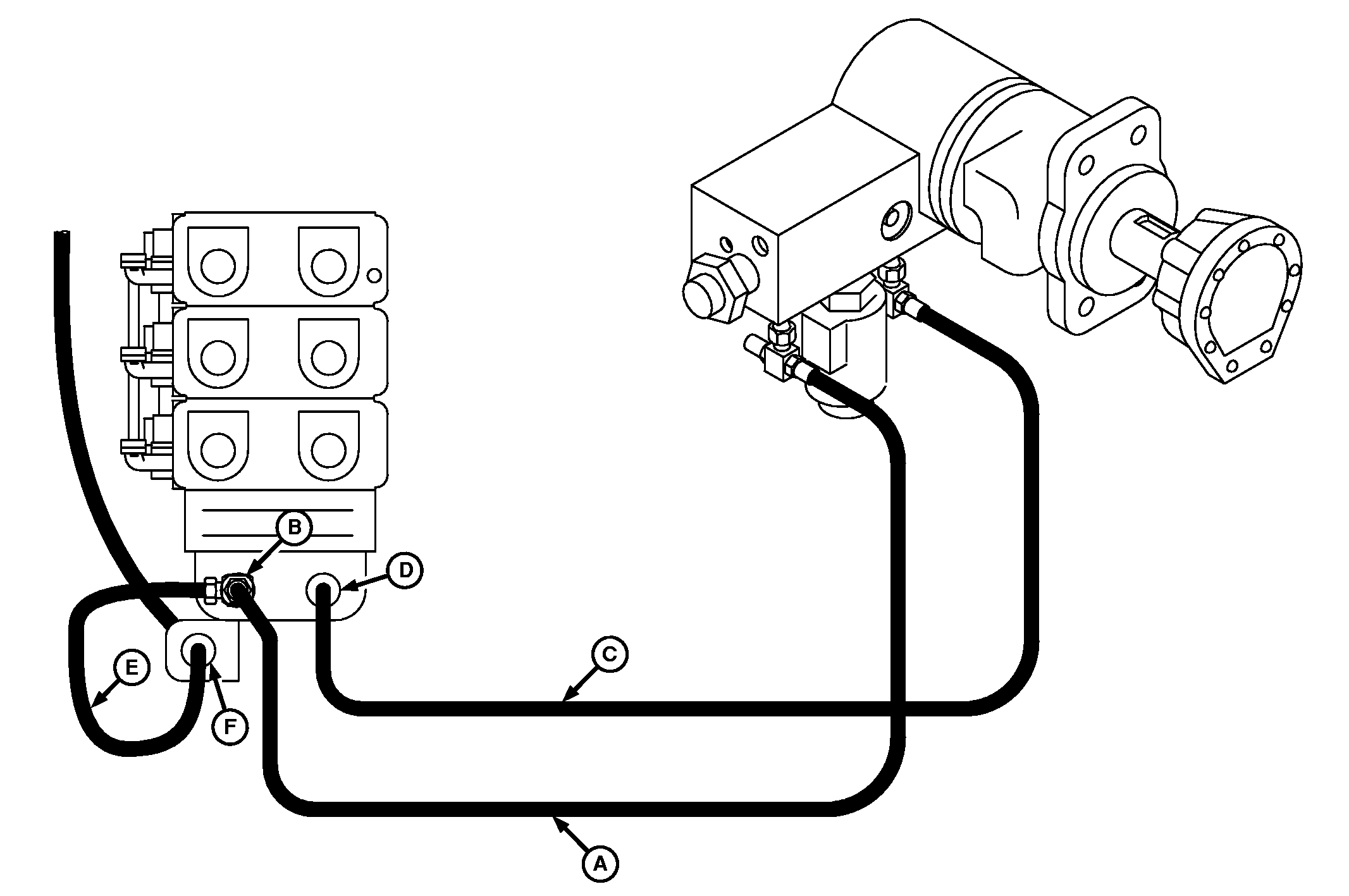

   A - Variable Drive Pressure Hose

   B - Power Beyond Pressure Port

   C - Variable Drive Return Hose

   D - Power Beyond Return Port

   E - Jumper Hose

   F - Power Beyond Load Sense Port

   Attach variable drive pressure hose (A) and tee fitting to power beyond pressure port (B) on tractor SCV.

---




2. Attach variable drive return hose (C) to power beyond return port (D).

3. Attach jumper hose (E) to power beyond load sense port (F) and pressure hose tee fitting.
