Variable Rate Fertilizer Warnings

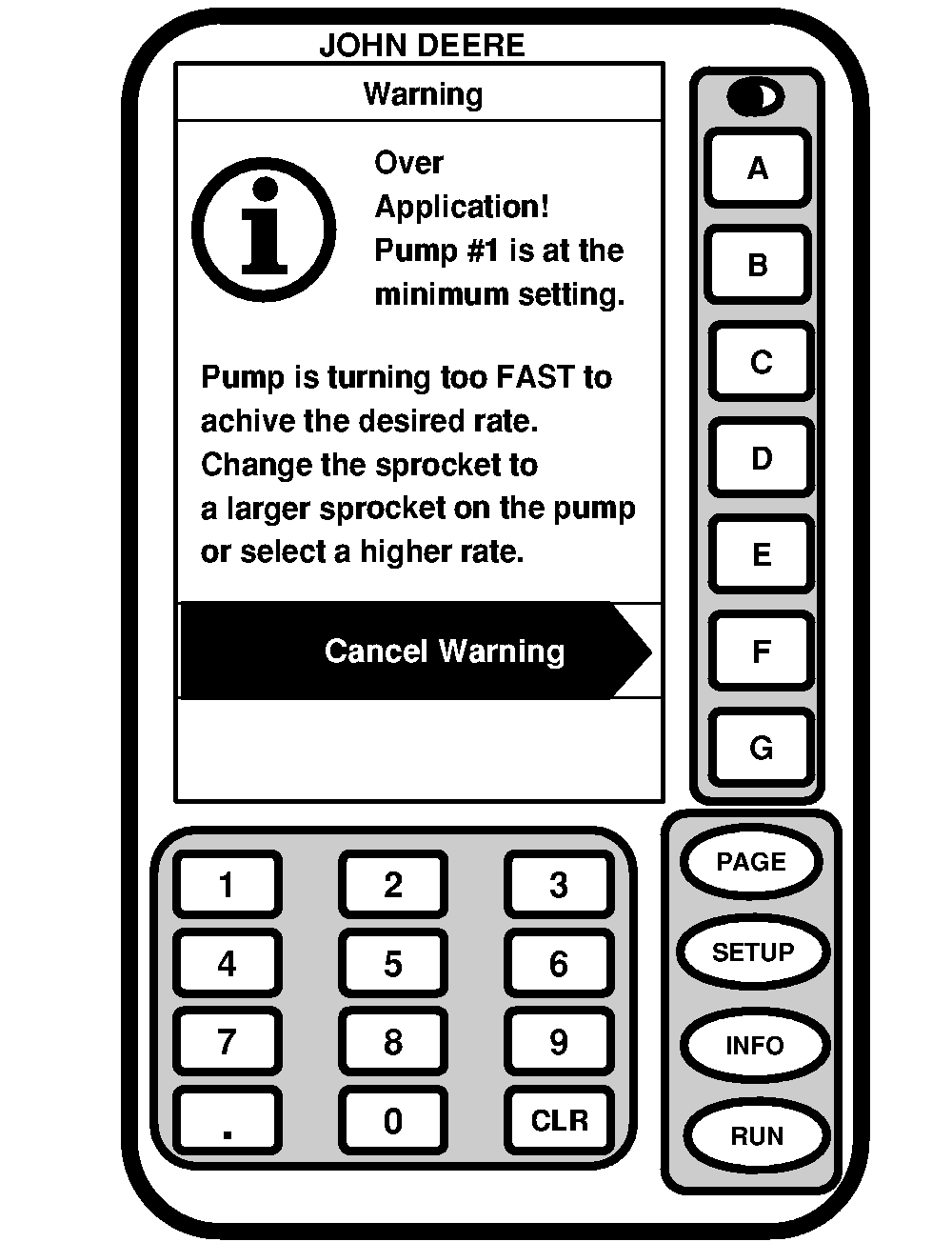

WARNING: Over Application!

NOTE: This warning will be followed by a “Over Application! Pump #1 at min. setting.” caution on line “G”.

A65061
A65061-UN-30JUL09

This warning is issued if the pump adjusts to its lowest setting and is still overapplying. The large sprocket should be installed to change the pump speed range or a higher rate should be selected. There is a caution associated with this warning. When the warning is cleared there is a caution issued.

Screen Area Information

Over Application! Pump #1 is at the minimum setting. - Over Application! Pump Number 1 is at the minimum setting.
Pump is turning too FAST to achieve the desired rate. Change the sprocket to a larger sprocket on the pump or select a higher rate. - Pump is turning too FAST to achieve the desired rate. Change the sprocket to a larger sprocket on the pump or select a higher rate.
Cancel Warning - Cancel Warning

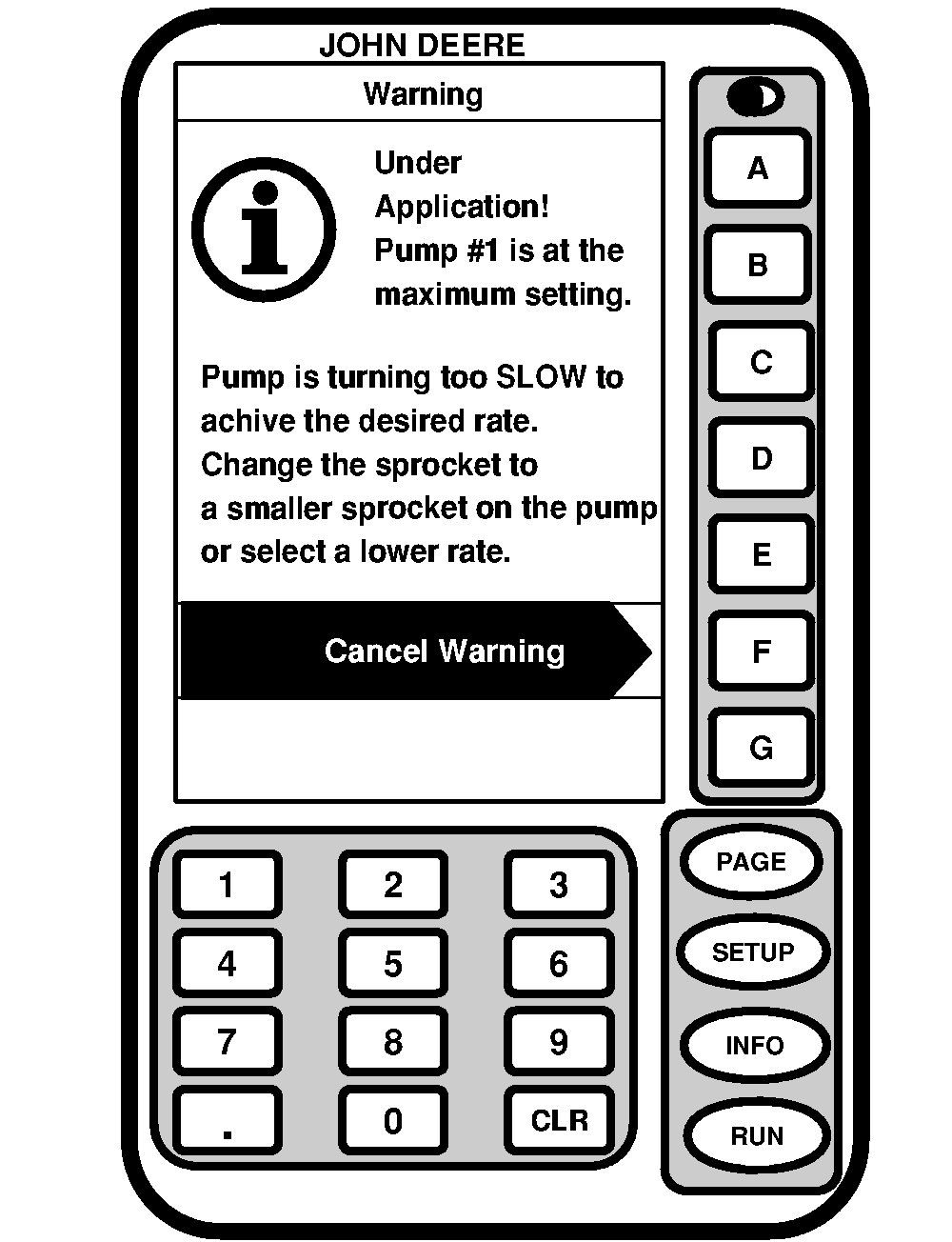

WARNING: Under Application!

NOTE: This warning will be followed by a “Under Application! Pump #1 at max. setting.” caution on line “G”.

A65062
A65062-UN-30JUL09

This warning is issued if the pump adjusts to its highest setting and is still underapplying. The small sprocket should be installed to change the pump speed range or a lower rate should be selected. There is a caution associated with this warning. When the warning is cleared there is a caution issued.

Screen Area Information

Under Application! Pump #1 is at the maximum setting. - Under Application! Pump Number 1 is at the maximum setting.
Pump is turning too SLOW to achieve the desired rate. Change sprocket to a smaller sprocket on the pump or select a lower rate. - Pump is turning too SLOW to achieve the desired rate. Change sprocket to a smaller sprocket on the pump or select a lower rate.
Cancel Warning - Cancel Warning

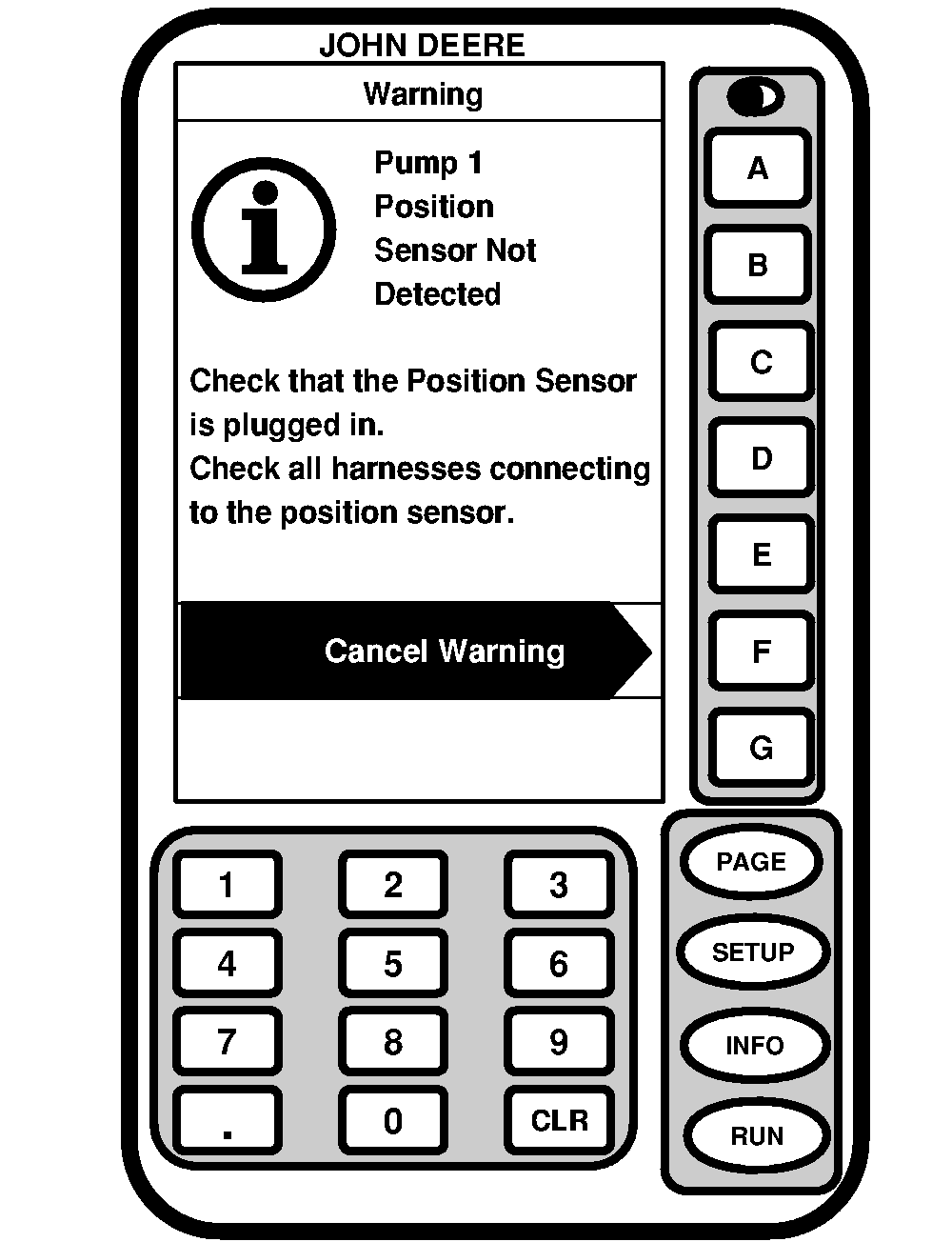

WARNING: Pump Position Sensor Not Detected

NOTE: This warning will be followed by a “Pump Sensor Fail.” caution on line “G”.

A65063
A65063-UN-30JUL09

This warning is issued if no signal is received from the pump position sensor. There is a caution associated with this warning. When the warning is cleared there is a caution issued.

Screen Area Information

Pump 1 Position Sensor Not Detected - Pump 1 Position Sensor Not Detected
Check that the Position Sensor is plugged in. Check all harnesses connecting to the position sensor. - Check that the Position Sensor is plugged in. Check all harnesses connecting to the position sensor.
Cancel Warning - Cancel Warning

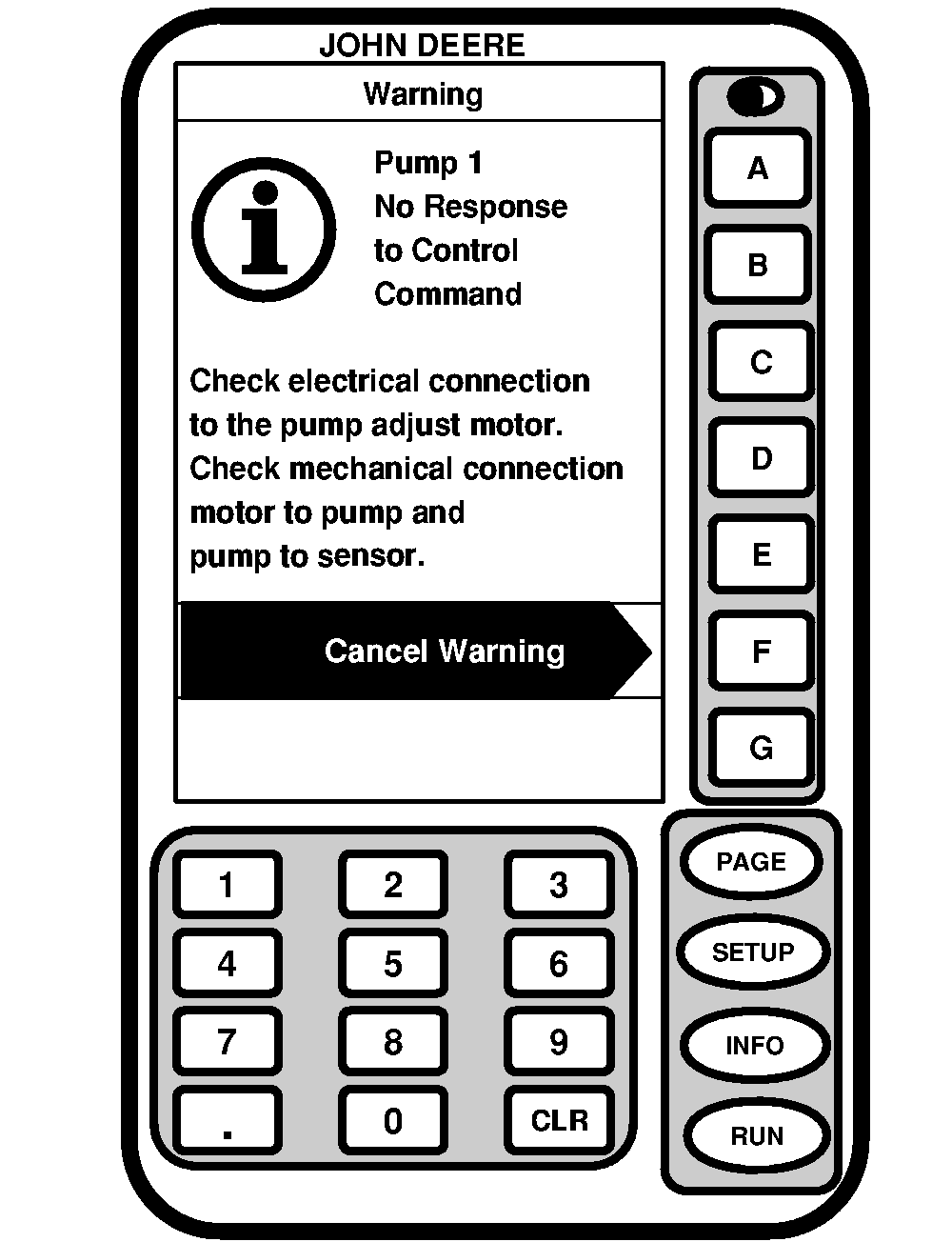

WARNING: No Pump Response To Control Command

NOTE: This warning will be followed by a “Pump not responding. Check System.” caution on line “G”.

A65064
A65064-UN-30JUL09

This warning is issued if no signal is received from the pump adjustment motor. There is a caution associated with this warning. When the warning is cleared there is a caution issued.

Screen Area Information

Pump 1 No Response to Control Command - Pump 1 No Response to Control Command
Check electrical connection to the pump adjust motor. Check mechanical connection motor to pump and pump to sensor. - Check electrical connection to the pump adjust motor. Check mechanical connection motor to pump and pump to sensor.
Cancel Warning - Cancel Warning

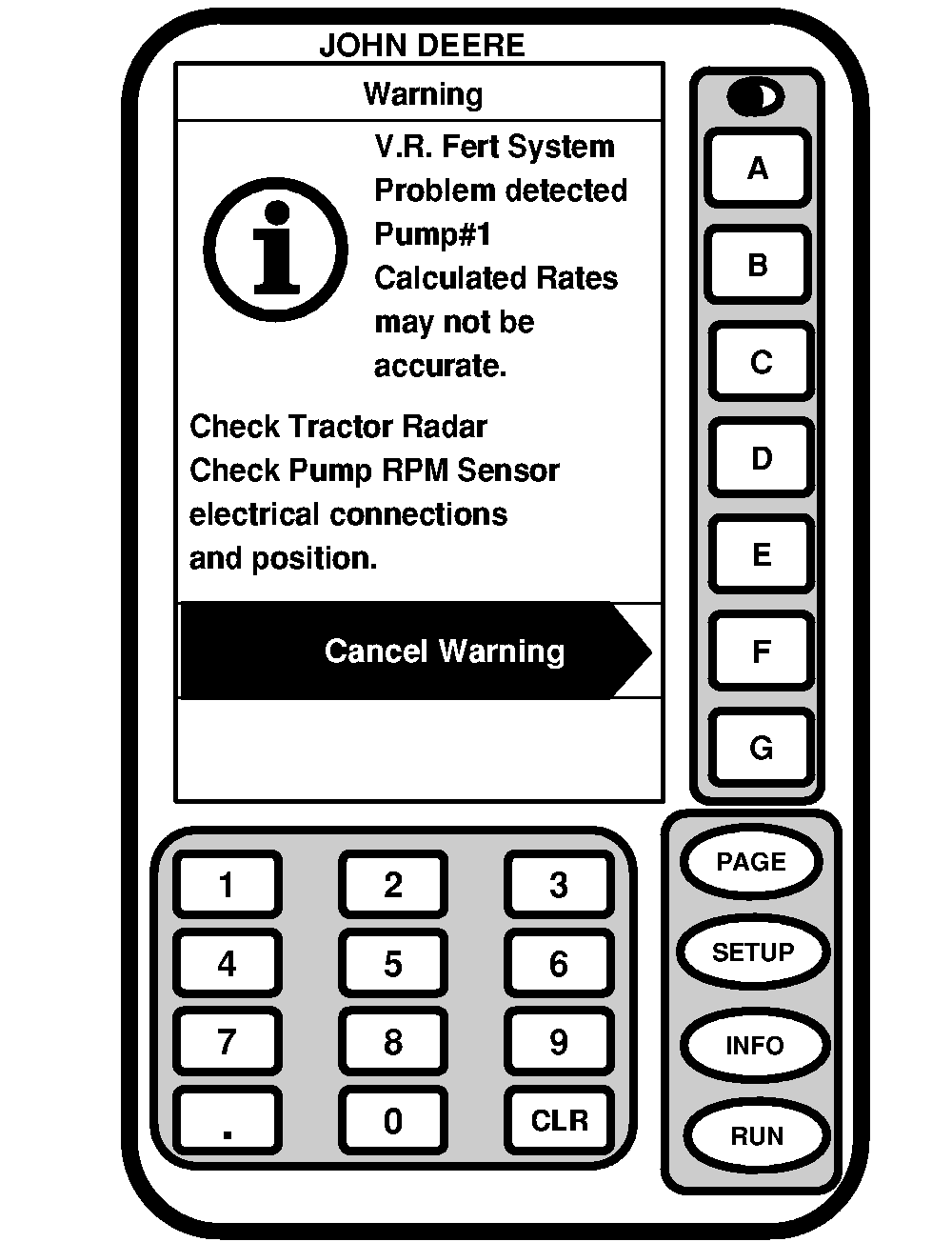

WARNING: V.R. Fert System Problem. Calculated rates may not be accurate.

NOTE: This warning will be followed by a “Pump #1 Calculated Rate more than 10% off Target.” caution on line “G”.

A65065
A65065-UN-30JUL09

This warning is issued if calculated rate is more than 10 percent off target rate. There is a caution associated with this warning. When the warning is cleared there is a caution issued.

Screen Area Information

V.R. Fert System Problem detected Pump #1 Calculated Rates may not be accurate. - Variable Rate Fertilizer System Problem detected Pump Number 1. Calculated Rates may not be accurate.
Check Tractor Radar Check Pump RPM Sensor electrical connections and position. - Check Tractor Radar Check Pump RPM Sensor electrical connections and position.
Cancel Warning - Cancel Warning

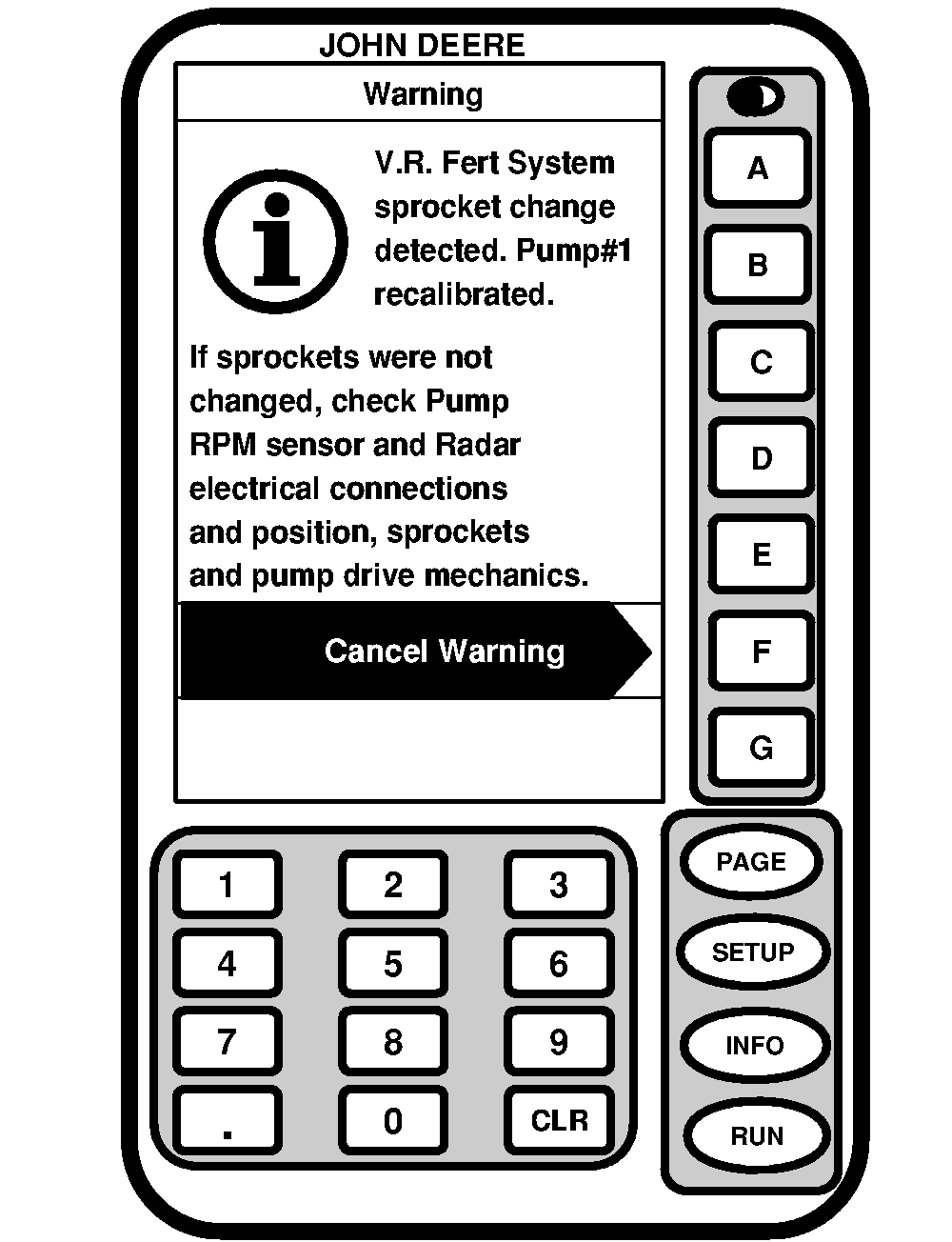

WARNING: V.R. Fert. System sprocket change detected.

NOTE: This warning will be followed by a “Pump #1 sprocket change detected” caution on line “G”.

A65066
A65066-UN-30JUL09

This warning is issued if the pump application changes without a sensor detecting motor adjustment. There is a caution associated with this warning. When the warning is cleared there is a caution issued.

Screen Area Information

V.R.Fert System sprocket change detected. Pump #1 recalibrated. - Variable Rate Fertilizer System sprocket change detected. Pump Number 1 recalibrated.
If sprockets were not changed, check Pump RPM sensor and Radar electrical connections and position, sprockets and pump drive mechanics. - If sprockets were not changed, check Pump RPM sensor and Radar electrical connections and position, sprockets and pump drive mechanics.
Cancel Warning - Cancel Warning

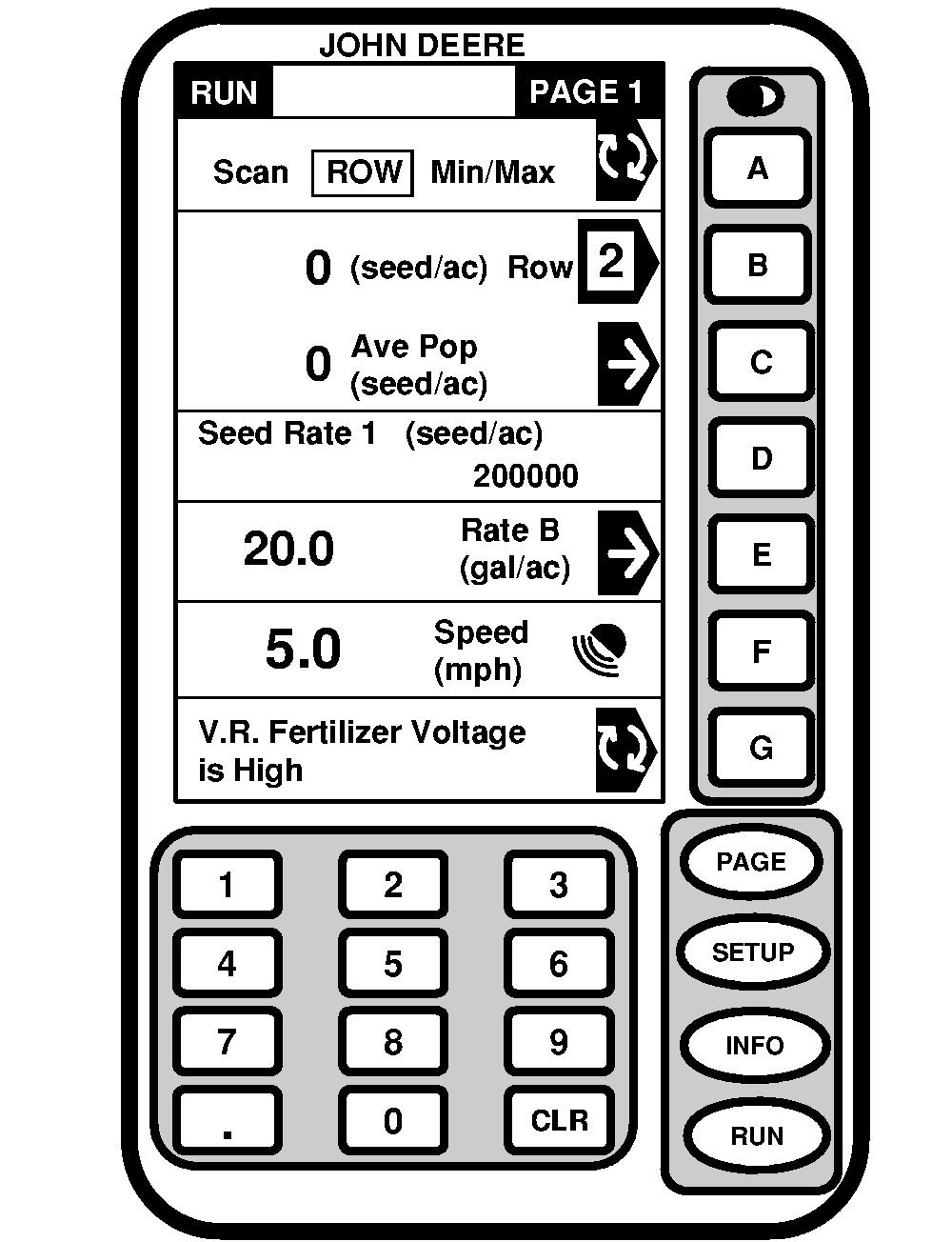

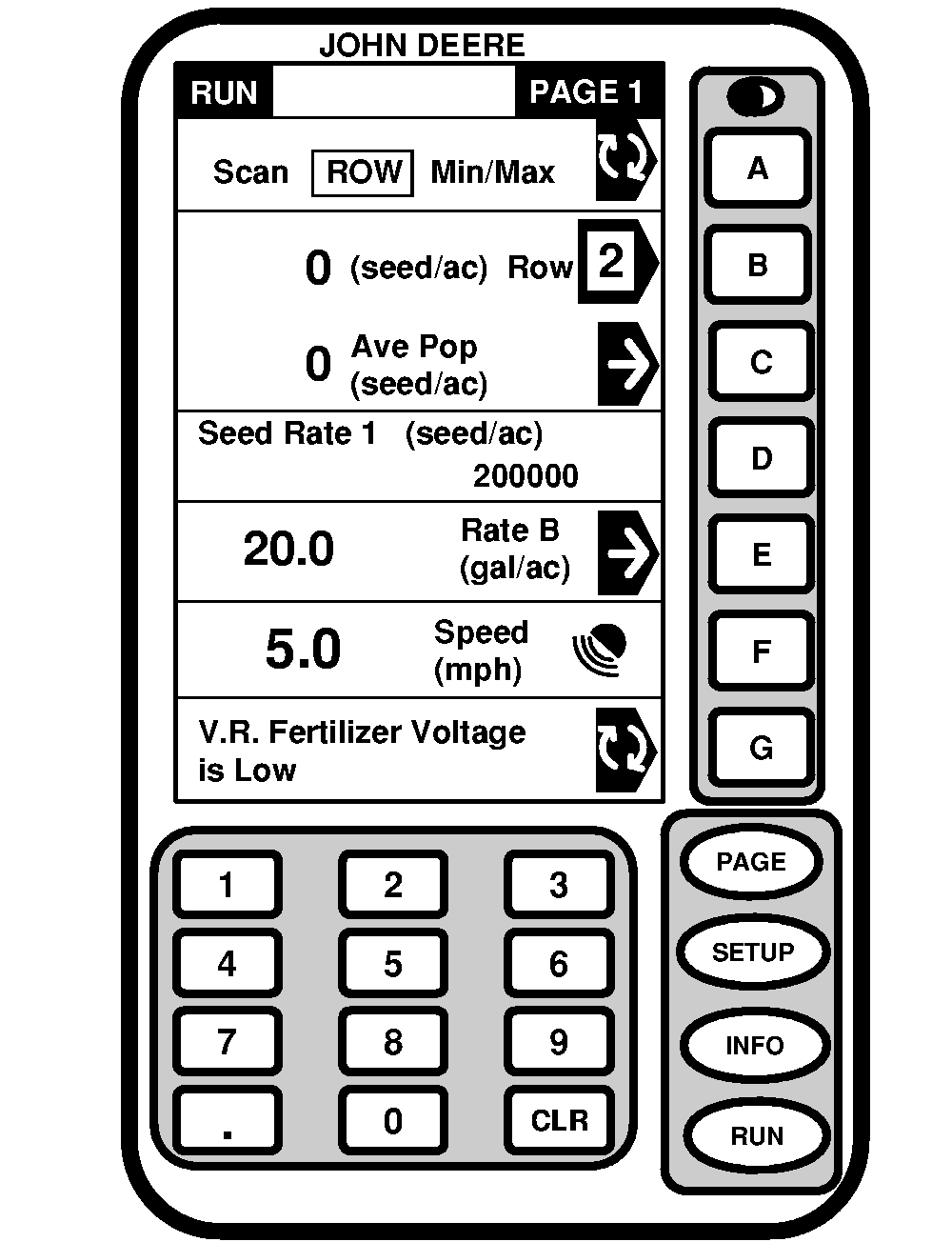

CAUTION: V.R. Fertilizer High/Low Voltage

A65067
A65067-UN-30JUL09

A65068
A65068-UN-30JUL09

This caution is issued if variable rate fertilizer voltage is too high or too low.

Screen Area Information

RUN



Page 1



Scan [ROW] Minimum/Maximum

A

0 (seed per acre) Row

B

0 Average Population (seed per acre)

C

Seed Rate 1 (seed per acre) 200000

D

20.0 Rate B (gallons per acre)

E

5.0 Speed (miles per hour)

F

Variable Rate Fertilizer Voltage is High

G

Screen Area Information

RUN



Page 1



Scan [ROW] Minimum/Maximum

A

0 (seed per acre) Row

B

0 Average Population (seed per acre)

C

Seed Rate 1 (seed per acre) 200000

D

20.0 Rate B (gallons per acre)

E

5.0 Speed (miles per hour)

F

Variable Rate Fertilizer Voltage is Low

G

OUO6074,000068C-19-20090730
