Adjust Motion Sensor Gap—1770NT, 1790, and Deere/Bauer

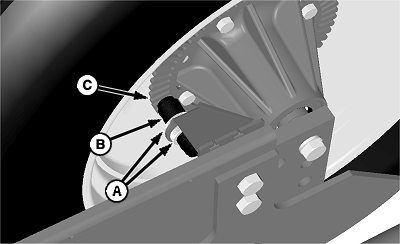

IMPORTANT: Avoid damage to sensor. Rotate wheel to ensure no contact between disk (C) and end of sensor (B).

A51324
A51324-UN-03DEC02

A - Lock Nuts

B - Sensor

C - Disk

Loosen lock nuts (A) and adjust position of wheel motion sensor (B) until space between end of sensor and disk (C) is 2—4 mm (0.08—0.16 in.). Tighten lock nuts.
