Input Entry Methods

A59311-UN-15FEB07

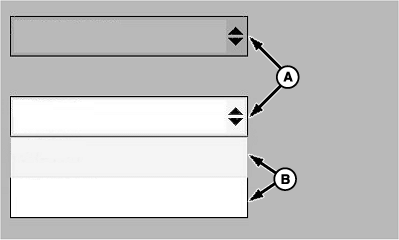

A - Drop-Down Box

B - List

Drop-Down Box

A drop-down box (A) contains a list (B) of items. Select a drop-down box to see list. Select an item from the list to make it the active item in the drop-down box.

To close a drop-down list without selecting a new item, select the current selection or touch (touchscreen only) an empty screen location.

A scroll bar, with up and down arrows, appears next to a list when it is longer than screen area. Select an arrow to scroll up or down.

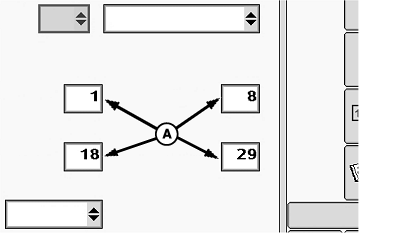

A59312-UN-11NOV08

A59357-UN-21MAR07

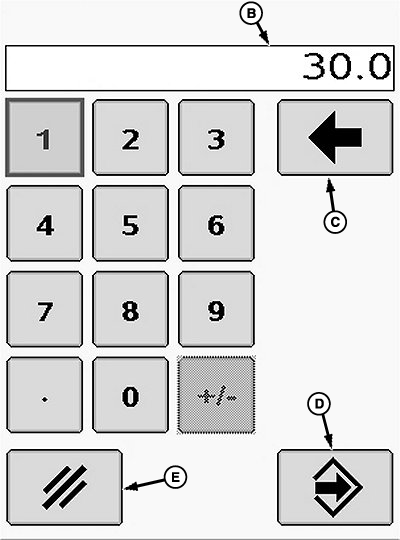

Numeric Keypad

A - Input Box

B - Bounding Box

C - Back Arrow

D - Enter

E - Cancel

Input boxes (A) allow numeric value entries.

• Select an Input Box to see the numeric keypad. Select desired value. Entered value appears in bounding box (B).
• Select Back Arrow (C) button to clear a selected value.
• Select Enter (D) button to confirm value.
• Select Clear (E) button to deactivate keypad without confirming a new value.

A59313-UN-15FEB07

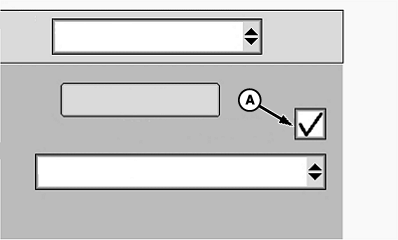

Check Box Example

A - Check Box

A check box (A) allows activation and deactivation of single items. A check mark indicates an active feature. An empty box indicates a deactivated feature.

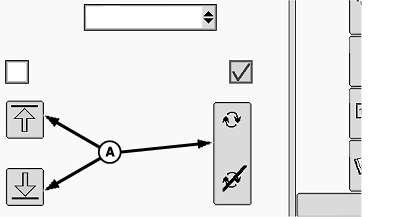

A59314-UN-11NOV08

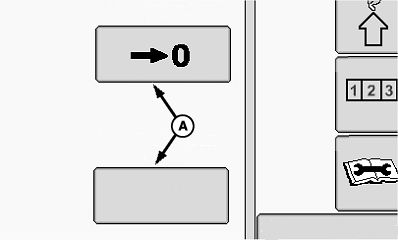

Button Examples

A59315-UN-15FEB07

Button Examples

A - Button

Buttons have different shapes, sizes, and images. Some have text on them. Select any button (A) to activate its feature.

A59363-UN-20FEB07

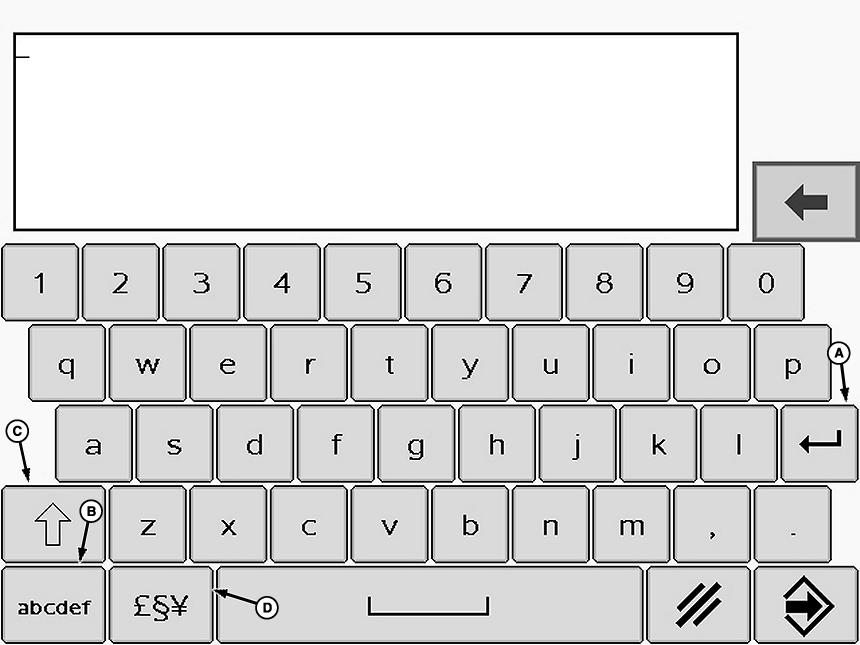

Custom Input Keypad

A - Return

B - Appearance

C - Case

D - Symbols

Some input or drop-down boxes have an Edit or Custom option. When Edit or Custom is selected, a keypad appears for data entry. The Return (A) button moves cursor to the next line down. The Appearance (B) button toggles between a standard qwerty keypad layout and an alphabetical keypad layout. The Case (C) button toggles between upper and lower case letters. The Symbols (D) button toggles between a keypad with letters and a keypad with symbols.
