Screen Layout Manager

1. IMPORTANT: Planter screen is only available in full screen or half screen. Error messages do not appear on half screen layout. Return to full screen to see messages when an audible alert signals an error.


   A59325-UN-19FEB07

   Primary Menu


   H85801-UN-14JUN06

   Enter


   H85814-UN-14JUN06

   Cancel


   H85816-UN-14JUN06

   Previous


   A61062-UN-09OCT07

   Layout Manager Button

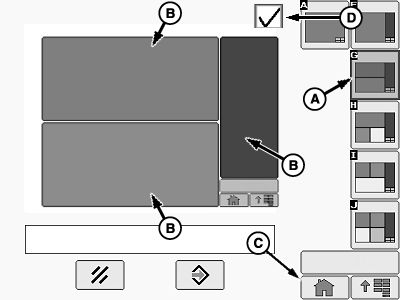

   A64359-UN-11MAR09

   A - Layout Patterns

   B - Selection Areas

   C - Home Page

   D - Home Page Collection Box

   Select Primary Menu button.

---




2. Select Layout Manager button.

3. Select a page number from the drop down menu.

4. Select a layout pattern (A) from right side of screen.

5. Select Include in Home Page Collection check box (D). Add a check to include this page. Clear the box to remove a page from the collection.

6. Select an area of screen (B) to change.

7. NOTE: If single-window layout is selected, select Enter button after option is chosen. No need to select preview.

   Only the options allowed in this area of screen appear. Select an option or select Previous button.

8. If an option is selected, a preview of selection appears. Select the preview to verify it is correct or select Previous button.

9. Select Enter button.

10. Select another area of screen to change. Continue until all areas are chosen.

11. To view all active home pages, repeatedly select the Home button (C).
