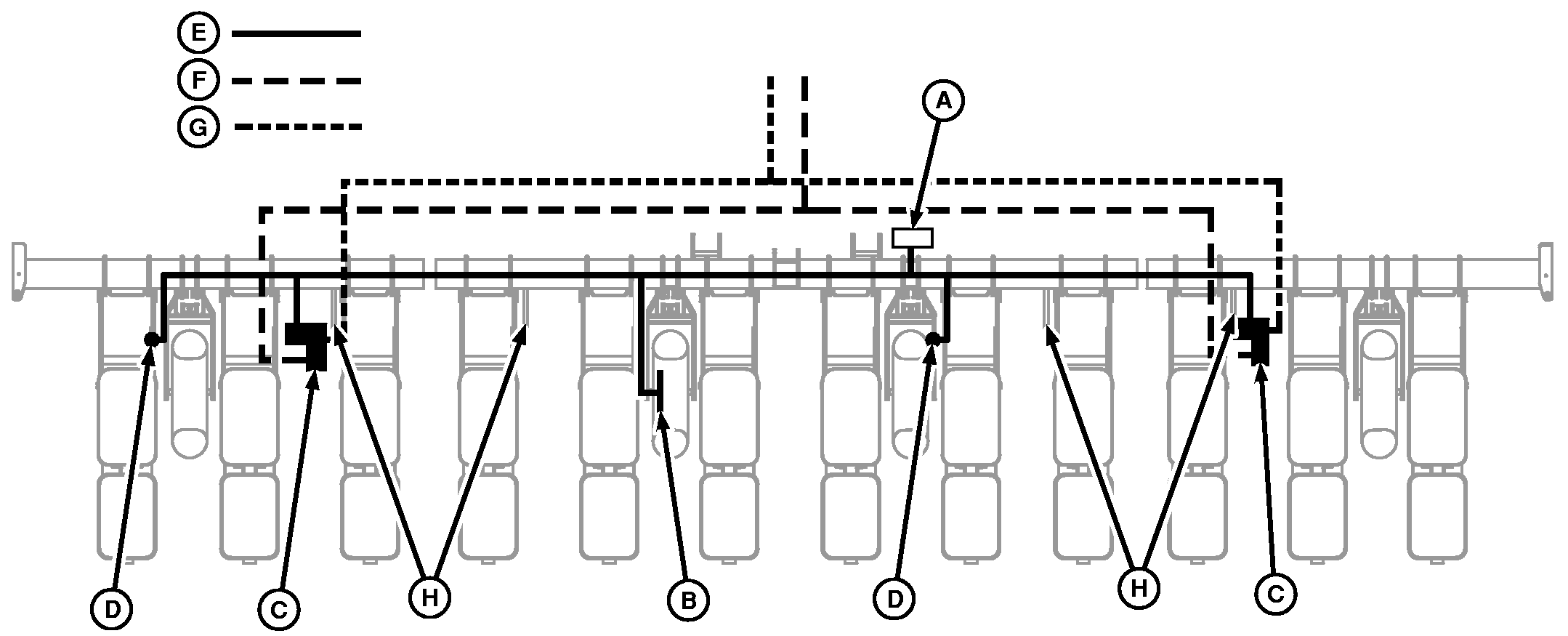

Component Locations—1720 12 Row Planters with Dual Motors

A61075-UN-10OCT07

A - Controller

B - Motion Sensor

C - VRD Motor

D - Height Sensor

E - Electrical

F - Hydraulic Pressure

G - Hydraulic Return

H - Reversed Idlers
