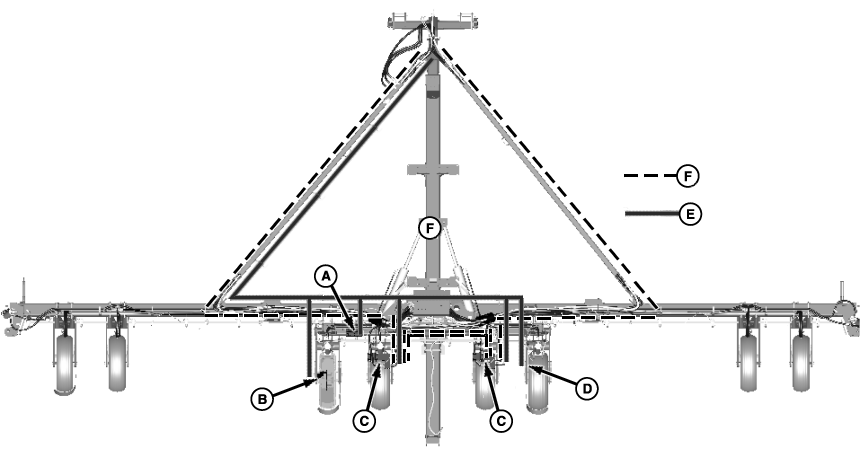

Component Locations—1770NT 12 Row and 16 Row
A61090-UN-10OCT07
A - Controller
B - Motion Sensor
C - VRD Motor
D - Height Sensor
E - Electrical
F - Hydraulic
OUO6074,0001058-19-20071010 |
Component Locations—1770NT 12 Row and 16 Row
A - Controller B - Motion Sensor C - VRD Motor D - Height Sensor E - Electrical F - Hydraulic
|
