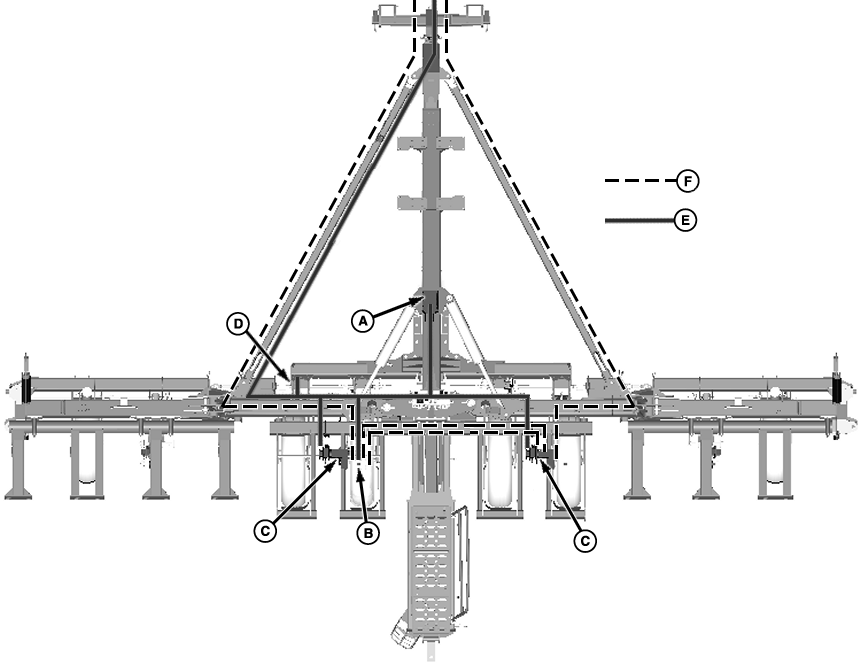

Component Locations—1790 23/24 Row 15
A61092-UN-10OCT07
A - Controller
B - Motion Sensor
C - VRD Motor
D - Height Sensor
E - Electrical
F - Hydraulic
OUO6074,000105B-19-20071010 |
Component Locations—1790 23/24 Row 15
A - Controller B - Motion Sensor C - VRD Motor D - Height Sensor E - Electrical F - Hydraulic
|
