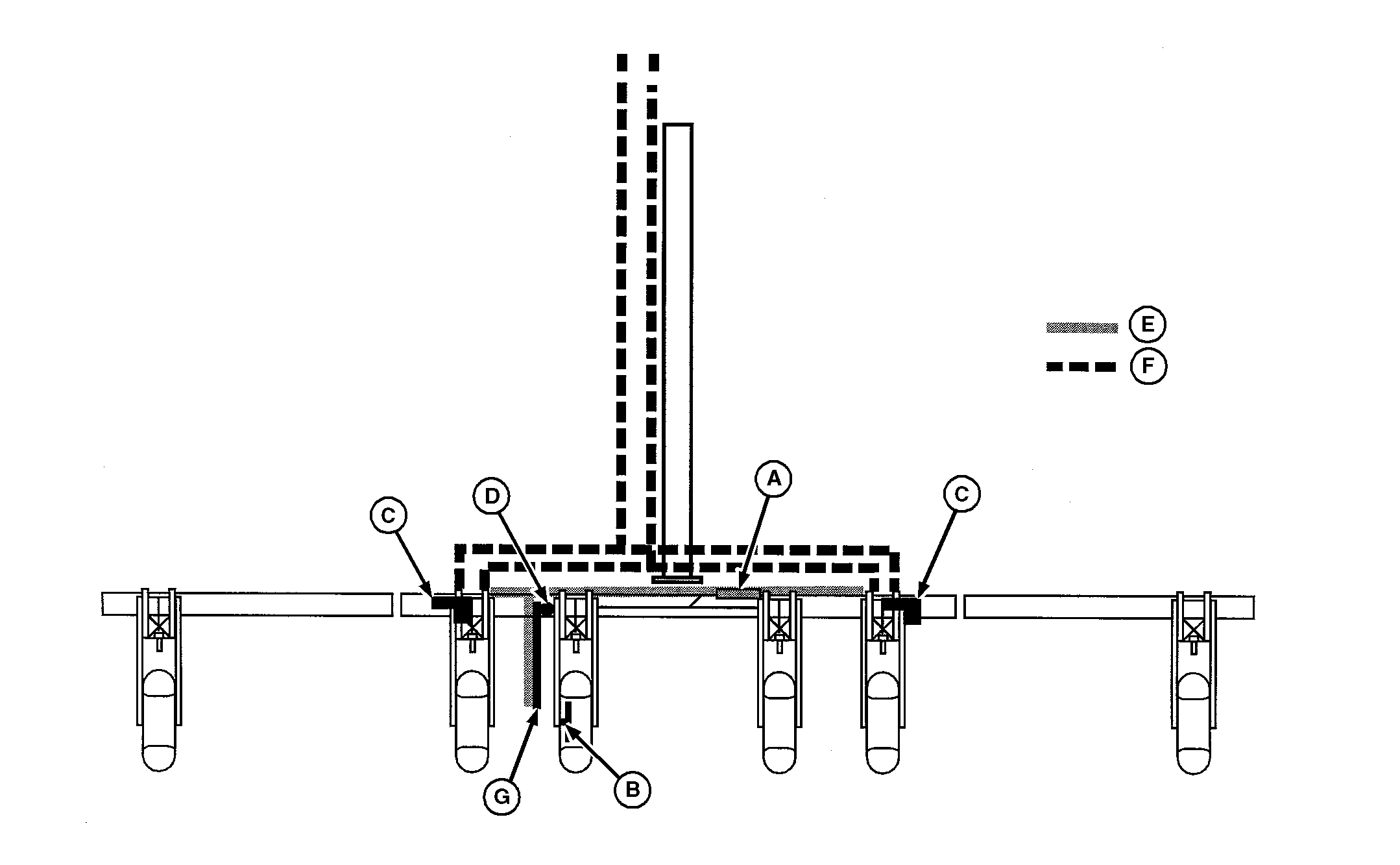

Component Locations—1760/1760NT Planters with Dual Motors
A61083-UN-10OCT07
A - Controller
B - Motion Sensor
C - VRD Motor
D - Height Sensor
E - Electrical
F - Hydraulic
G - Shield
OUO6074,0001064-19-20071010 |
Component Locations—1760/1760NT Planters with Dual Motors
A - Controller B - Motion Sensor C - VRD Motor D - Height Sensor E - Electrical F - Hydraulic G - Shield
|
