Clean or Replace Compressor Air Filter

1. IMPORTANT: Filter cleanliness is critical to maintain the performance and service life of the air compressor. Clean or replace the air filter element every 50 hours; more frequently in extremely dusty conditions.


   A68378-UN-26JUL10


   A68380-UN-27JUL10

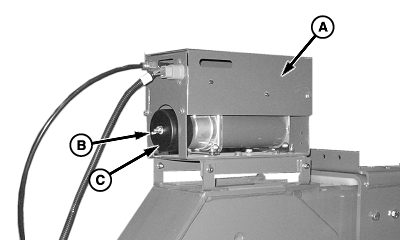

   A - Air Compressor

   B - Wing Nut and Seal Washer

   C - Weather Shield

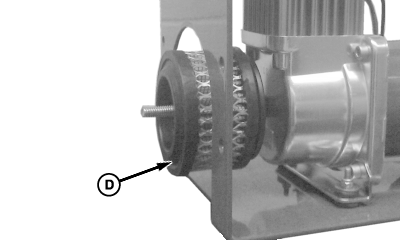

   D - Filter

   Clean dust from area around the compressor air filter.

---




2. Remove and retain wing nut and seal washer (B).

3. Remove weather shield (C) and filter element (D).

4. IMPORTANT: Make sure no dust enters air compressor inlet.

   Wipe dust from filter base.

5. Replace filter and weather shield.

6. Reinstall seal washer tighten wing nut.
