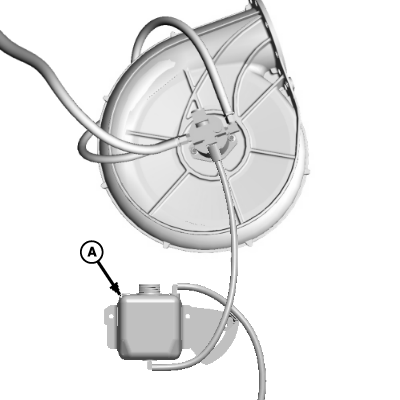

Oil Reservoir for CCS Fan Motor
A68295-UN-19JUL10
A - Reservoir
Under certain conditions, the CCS fan motor allows a small amount of oil to leak past the motor shaft seal. This leakage is considered normal. Normal leakage of oil does not fill the reservoir (A) during a planting season. If reservoir fills completely, inspect the motor for seal failure. See your John Deere™ dealer.John Deere is a trademark of Deere & Company | OUO6074,0000A4D-19-20100719 |
