Warning Messages

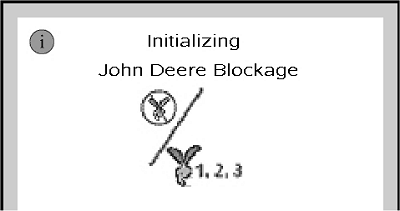

A62108-UN-22FEB08

Initializing John Deere™ Blockage

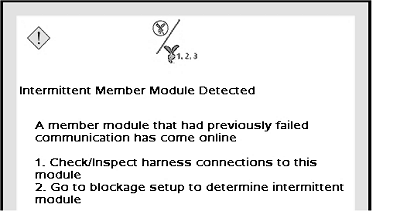

A62109-UN-22FEB08

Intermittent Member Module Detected

A member module that had previously failed communication has come online.

1. Check or inspect harness connections to this module.
2. Go to blockage setup screen to determine intermittent module number.

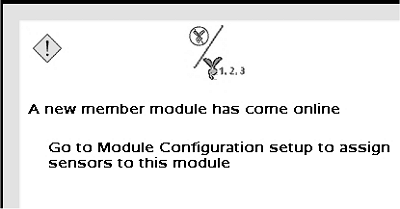

A62110-UN-22FEB08

A new member module has come online.

Go to module configuration setup to assign sensors to this module.

A62111-UN-22FEB08

1. Verify correct module setup.
2. Inspect module harness for damage.
3. Inspect module for damage.

A62112-UN-22FEB08

Member module CAN communication lost.

1. Inspect CAN harness for damage.
2. Inspect module harness for damage.
3. Inspect module for damage.
4. Go to blockage setup to view inactive modules.

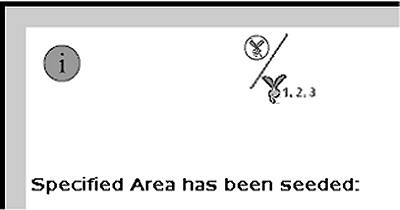

A62115-UN-22FEB08

Specified area has been seeded.

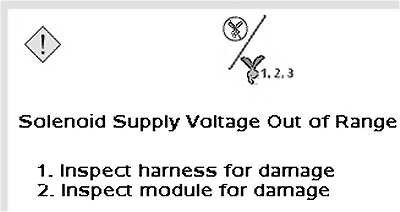

A62116-UN-22FEB08

1. Inspect harness for damage.
2. Inspect module for damage.

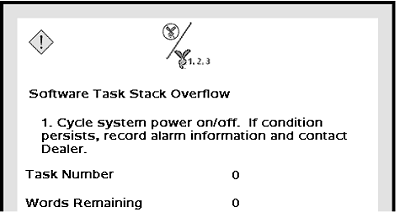

A62117-UN-22FEB08

Cycle system power on and off. If condition persists, record alarm information and contact your John Deere™ dealer.

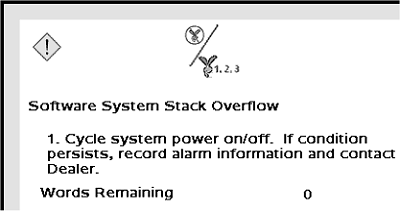

A62118-UN-22FEB08

Cycle system power on and off. If condition persists, record alarm information and contact your John Deere™ dealer.

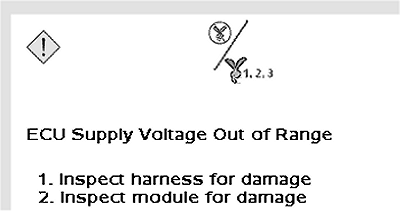

A62119-UN-22FEB08

1. Inspect harness for damage.
2. Inspect module for damage.

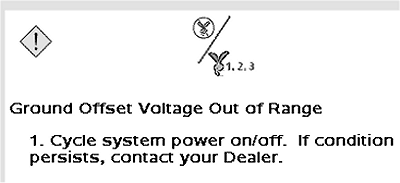

A62120-UN-22FEB08

Cycle system power on and off. If condition persists, contact your John Deere™ dealer.

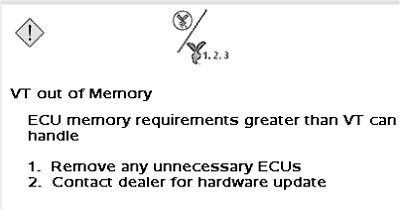

A62121-UN-22FEB08

ECU memory requirements greater than VT can handle.

1. Remove any unnecessary Electronic Control Units.
2. Contact dealer for hardware update.

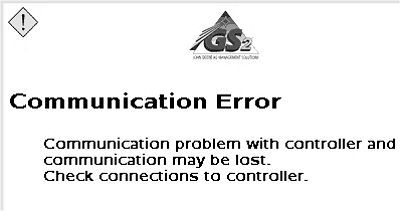

A62129-UN-22FEB08

Communication problem with controller and communication may be lost. Check connections to controller.

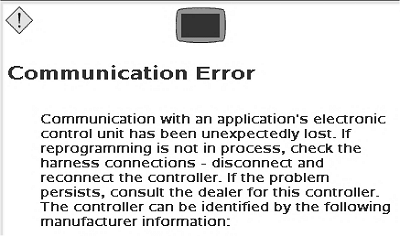

A62130-UN-22FEB08

Communication with an application's electronic control unit has been unexpectedly lost. If reprogramming is not in progress, check the harness connections then disconnect and connect the controller. If the problem persists, consult the dealer for this controller. The controller can be identified by the following manufacturer information.
