Adjust Press Wheel Scrapers

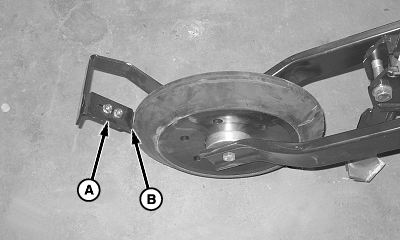

A64584-UN-20MAY09
A - Scraper
B - Gap
Adjust gap (B) of scraper (A) and press wheel to specification.
Item
Measurement
Specification
Scraper to Press Wheel
Distance
1.5 mm (0.06 in.)
.
OUO6435,000234D-19-20090520
