Replace Inside Scrapers

NOTE:

N86111K1
N86111K1-UN-28SEP88

N86140K1
N86140K1-UN-18DEC01

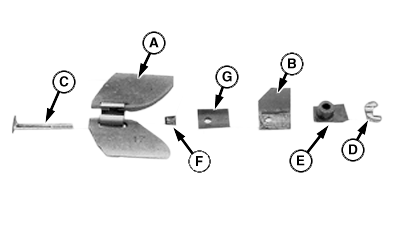

A - Scraper

B - Leaf Spring

C - T-Bolt

D - Wing Nut

E - Spacer (Scraper)

F - Spacer (Short)

G - Spacer (Block)

Use scrapers (A) to prevent dirt build-up in wet or sticky soil conditions. Remove scrapers in dry soil conditions. When installing scrapers, do not bend leaf spring (B) together.

  1. Replace scrapers by inserting T-bolt (C) in boot and turning 90 degrees. Tighten wing nut (D) so spacers (E) and (G) are tight against spring. If additional force is needed, add additional springs (B). Install spring, spacer, and wing nut.

  2. To remove scrapers, loosen wing nut (D) and turn T-bolt (C) 90 degrees and remove.

AG,OUO6074,1024-19-20000509
