Setting Selective Control Valve and Rockshaft (7000 Series Tractors)

A37005
A37005-UN-06JUN95

A - Automatic Detent Position

B - Continuous Detent Position

C - Flow Control Valves

Set SCV control knob used for marker control to automatic detent position (A). Set SCV control knob used for active downforce to continuous detent position (B). Set flow control knobs (C) to full open position.

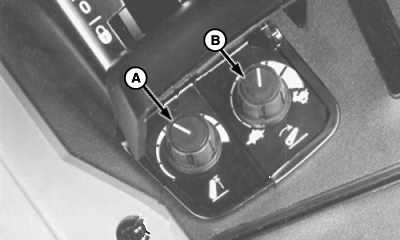

A47220
A47220-UN-05APR01

A - Height Limit Control Knob

B - Drop Rate Control Knob

Adjust height limit by turning control knob (A). When knob is fully counterclockwise, height is limited to 25 percent of maximum. When knob is fully clockwise, height is at maximum.

NOTE: It should require at least 2 seconds to lower machine.

Adjust rate of drop by turning control knob (B). Turn knob clockwise to increase drop rate or counterclockwise to decrease drop rate.

OUO6074,00004C2-19-20020201
