Detaching Machine from Tractor

1.
   A44891-UN-05MAY98

   A - Lock Pin

   B - Stand

   Remove lock pin (B) and lower stand (A).

---




2.
   A44890-UN-05MAY98


   R29519-UN-09FEB90

   A - Hitch Stand

   B - Lock Pin

   With hitch stand (A) lowered, install lock pin (B) in middle hole of stationary tube.

---




3. (With Quick-Coupler) Release latch levers.

4. Lower machine onto level surface.

5. NOTE: It may be necessary to move pin (B) to hole above or below center hole.

   (Without Quick-Coupler) Disconnect center link.

6. (Without Quick-Coupler) Remove hitch pins.

7.

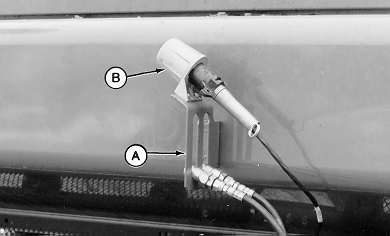

   A44338-UN-13DEC97

   A - Storage Bracket

   B - Container

   Disconnect hydraulic hoses and place in storage bracket (A).

   IMPORTANT: Keep couplers clean. Abrasive particles, like sand or metal fragments, can damage seals, barrels and pistons, causing internal leakage.

---




8. Disconnect seven-pin harness and store in container (B).

9. Disconnect tractor from machine.
