Leveling the Machine

IMPORTANT:

A44892
A44892-UN-06NOV00

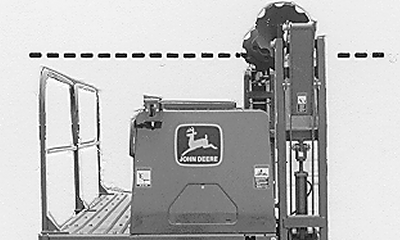

Machine must be level before entering the field to prevent damage to openers and press wheels.

Periodically check the machine to be certain it is running level.

  1. Lower machine to seeding position on a level surface.

  2. Adjust tractor center link so tank lid is parallel to ground.

A44903
A44903-UN-04MAY98

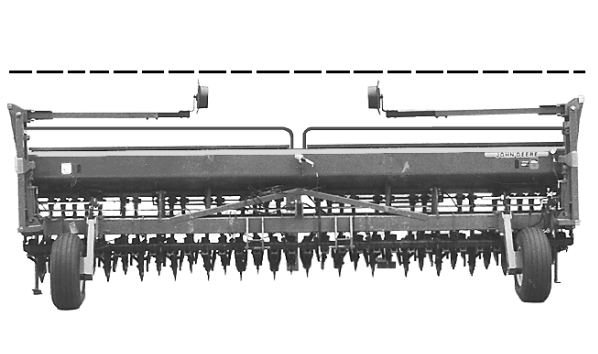

Raise machine and adjust tractor right-hand draft link until machine is level from side to side.

OUO6074,00004CD-19-20020201
