Changing Gauge Wheel Position

1.
   A44341-UN-13DEC97

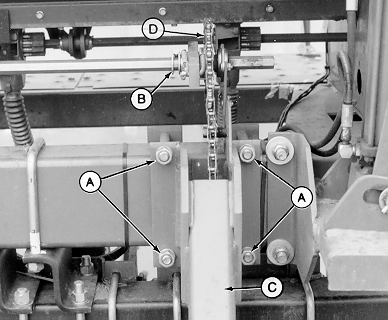

   Changing Gauge Wheel Position

   A - Nuts

   B - Clamp

   C - Wheel Assembly

   D - Drive Sprocket

   Loosen four cap screws and nuts (A).

---




2. Loosen clamp (B) on drive shaft assembly.

3. Slide wheel assembly (C) and drive sprocket (D) to desired position on frame.

4. Tighten cap screws (A) and clamp (B).

5. Repeat procedure on other side of machine.
