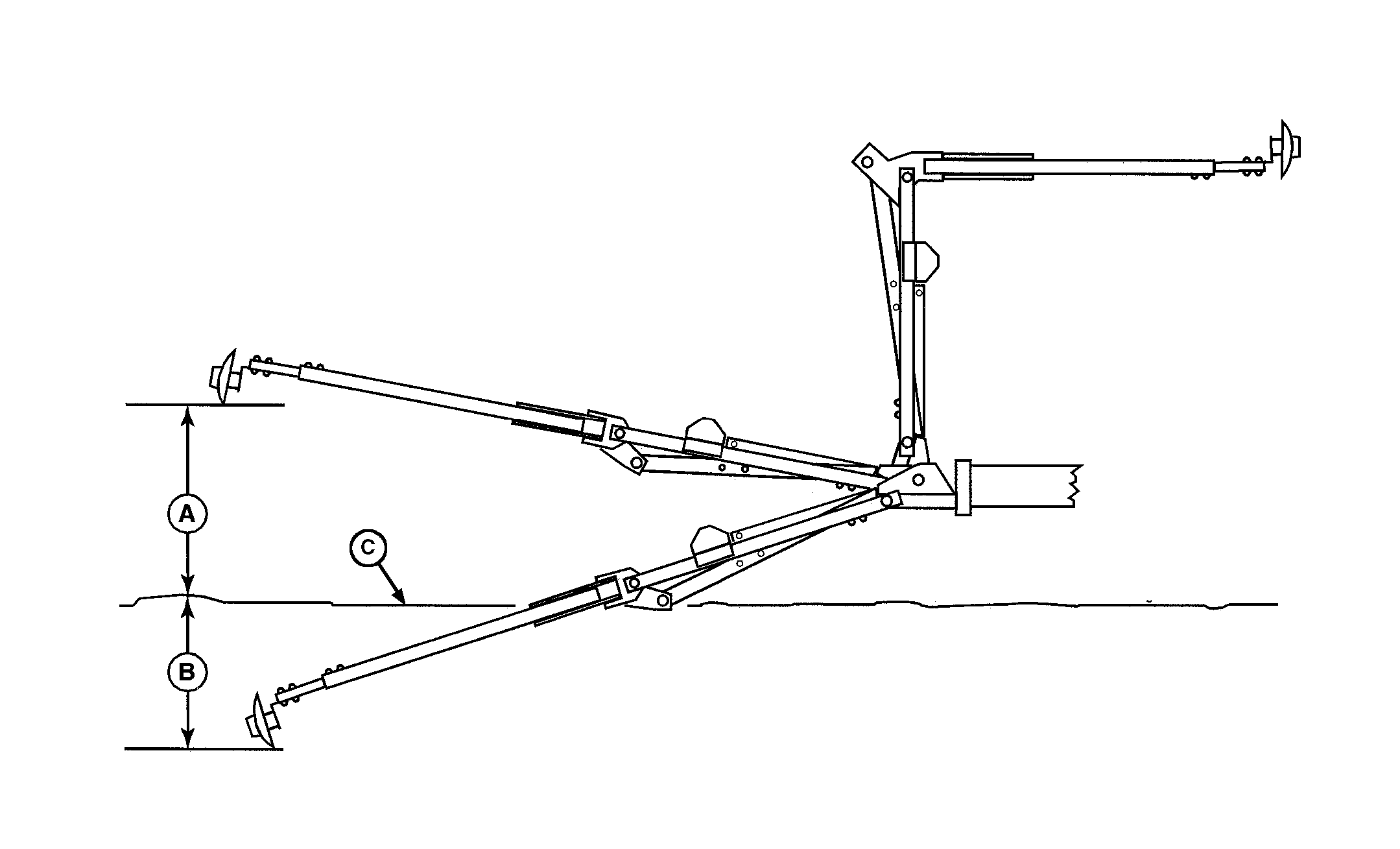

Marker Float Range
A46772-UN-13OCT00
A - Dimension
B - Dimension
C - Ground Line
The marker has an approximate float range (see chart below) which should not be exceeded, such as when drilling near drainage ditches or hillsides.Exceeding this float range can result in damage to the marker inner arm.
If this range must be exceeded, raise the marker by raising the machine or by operating the marker remote cylinder operating lever.
|
Drill |
Dimension “A” |
Dimension “B” |
|---|---|---|
|
4.6 m (15 ft) |
508 mm (20 in.) |
406 mm (16 in.) |
|
6.1 m (20 ft) |
533 mm (21 in.) |
533 mm (21 in.) |
|
