Checking Feeds for Machines with Grass Seed Attachment

1.

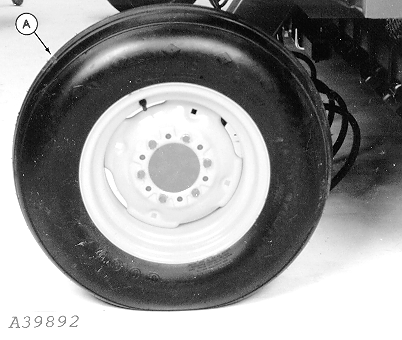

   A39892-UN-19JUN96

   A - Drive Wheel

   Raise machine so drive wheel (A) is not touching the ground.

---




2. CAUTION: Be careful when using diesel fuel so that it does not ignite causing serious injury or death to you or others. Use only in well ventilated areas away from any sparks or flames.

   IMPORTANT: Do not allow diesel fuel (or any other petroleum product) to contact rubber tubes as it causes deterioration.

   Turn drive wheel (A) in direction feeds normally turn. If shaft turns hard, loosen moving parts with diesel fuel.

3. Turn drive wheel daily, before adding seed. If treated seed is used, turn drive wheel whenever machine has been standing for an hour or longer.
