Ratchet Drive

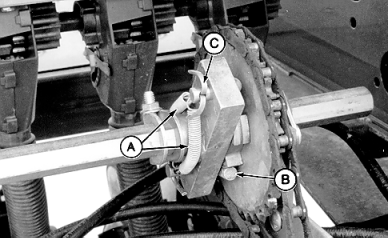

A41385
A41385-UN-29AUG97

A - Spring

B - Dogs

C - Cotter Pins

The ratchet assembly must operate freely and the spring (A) must bridge the dogs (B) back against the ratchet.

If the springs do not bring the dogs back against the ratchet, push the cotter pins (C) all the way in and re-spread the cotter pins to put more tension on the springs.
