Lever Lock Clip (40—60 Series Row Crop Tractors)

NOTE: The clip keeps lever from returning to NEUTRAL to maintain constant oil pressure to the down pressure valve, as required, to maintain chosen pressure setting.

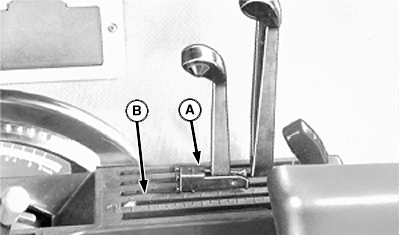

RW5845
RW5845-UN-17DEC01

A - Lock Clip

B - Lock-Out Stop

If equipped with constant hydraulic downforce, the lever lock clip R52667 (A), over lock-out stop (B) must be used to hold opener control lever in the DOWN position.

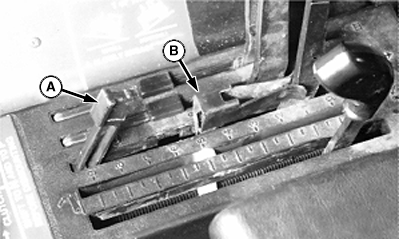

  1. N42122FD
    N42122FD-UN-18DEC01

    A - Lock-Out Stop

    B - Lock Clip

    Lift float lock-out stop (A).


  2. Squeeze sides of lock clip (B) and insert into groove as shown.

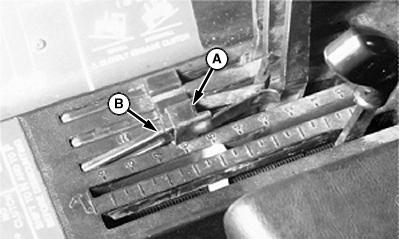

  3. N42122FE
    N42122FE-UN-18DEC01

    N42122FG
    N42122FG-UN-06JAN92

    N42122FH
    N42122FH-UN-06JAN92

    A - Lock Clip

    B - Lock-Out Stop

    Slide lock clip (A) over lock-out stop (B).


  4. Push lock-out stop and lock clip down.

  5. Push handle forward into lock-clip when constant hydraulics is needed.

OUO6074,00004EF-19-20020205
