Checking Feed Shaft Rolling Torque
NOTE: Remove countershaft gear before checking rolling torque.
NOTE: Torque can be checked with or without agitators.

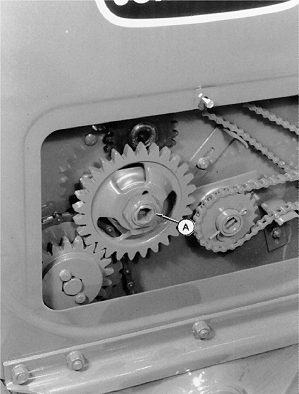

N89157H-UN-07SEP89
A - Feed Shaft
Insert torque wrench into feed shaft (A) to check rolling torque.
| Item | Measurement | Specification |
| Feed Shaft | Rolling Torque | 23 N˙m (17 lb-ft) |
|
OUO6074,00004F9-19-20020213 |
