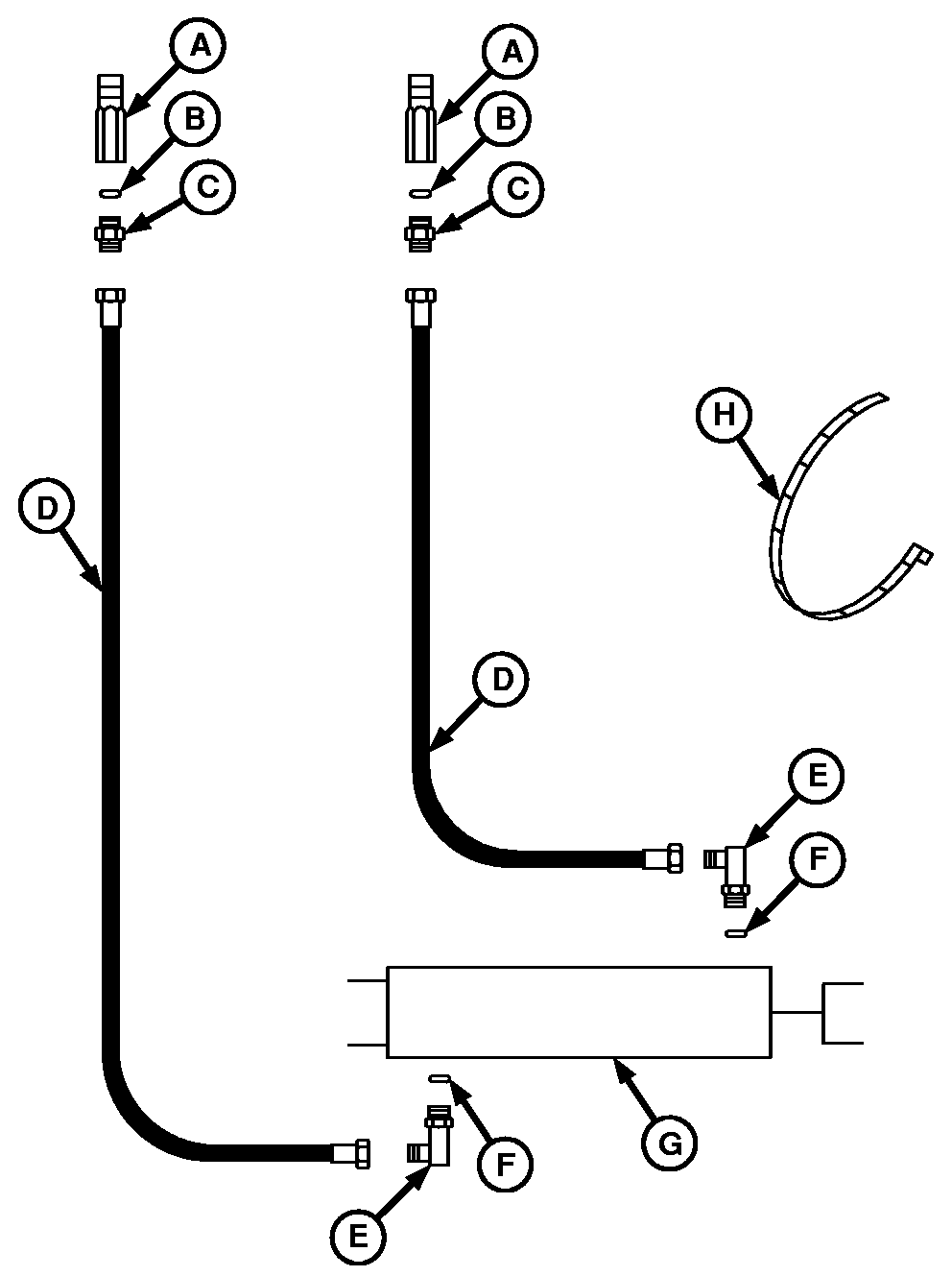

Hydraulic Location Drawing Left-Hand Marker Only

A48664-UN-20FEB02

A - Internal Half Coupler (2 used)

B - O-Ring (2 used)

C - Fitting (2 used)

D - Hydraulic Hose, (2 used) 4.6 m (15 ft)-4572 mm (180 in.)
6.1 m (20 ft)-5334 mm (210 in.)

E - Hydraulic Restrictor (2 used)

F - O-Ring (2 used)

G - Hydraulic Cylinder

H - Tie Wrap, Plastic (4 used)
