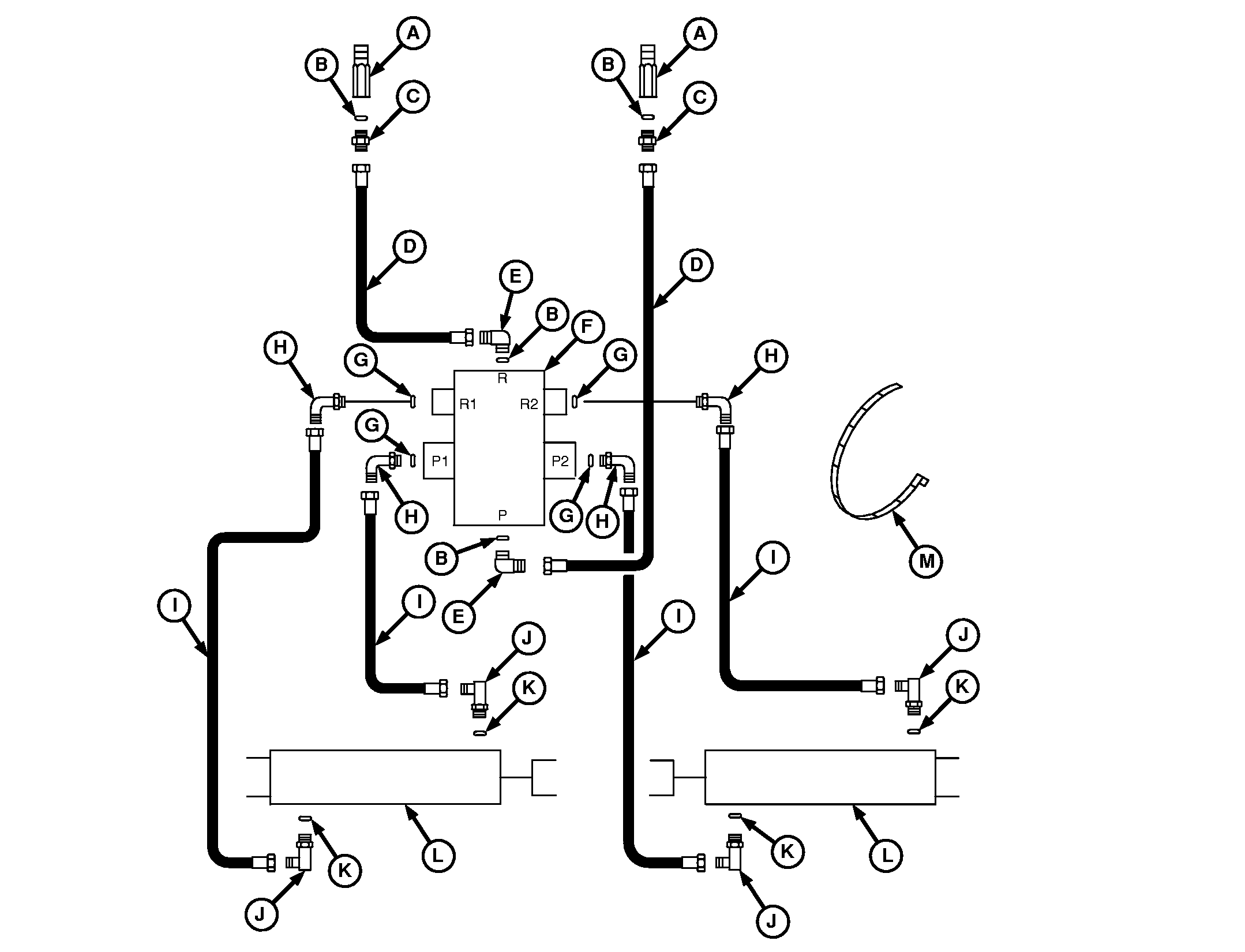

Marker Hydraulic Location Drawing

A48665-UN-20FEB02

A - Internal Half Coupler (2 used)

B - O-Ring (4 used)

C - Fitting (2 used)

D - Hydraulic Hose (2 used)

E - Elbow Fitting (2 used)

F - Sequence Valve

G - O-Ring (4 used)

H - Elbow Fitting (4 used)

I - Hydraulic Hose,
4.6 m (15 ft) 3048 mm (120 in.)
6.1 m (20 ft) 3810 mm (150 in.) (4 used)

J - Elbow Fitting (Orificed) (4 used)

K - O-Ring (4 used)

L - Hydraulic Cylinder (2 used)

M - Tie Wrap, Plastic (8 used)
