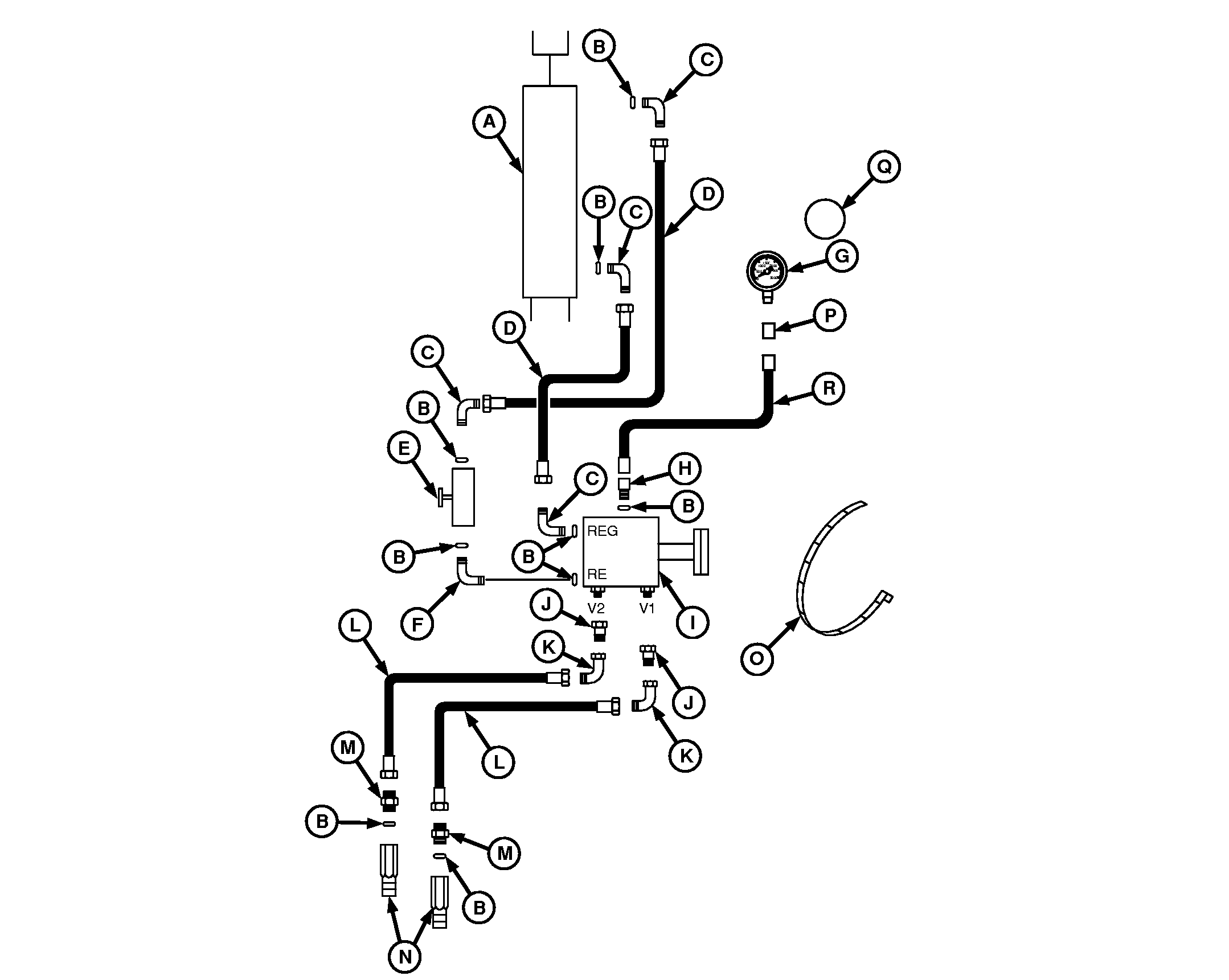

Hydraulic Down Pressure Location Drawing—4.6 m (15 ft)

A48666-UN-20FEB02

A - Cylinder

B - O-Ring (9 used)

C - Elbow Fitting (4 used)

D - Hose, 1778 mm (70 in.) (2 used)

E - Valve, Cylinder Lock

F - Elbow

G - Pressure Gauge

H - Adapter

I - Valve, Pressure Regulating

J - Adapter Fitting (2 used)

K - Elbow Fitting (2 used)

L - Hose, 4572 mm (180 in.) (2 used)

M - Adapter Fitting (2 used)

N - Coupler (2 used)

O - Plastic Tie (4 used)

P - Coupler

Q - Gauge Decal

R - Hose, 559 mm (22 in.)
