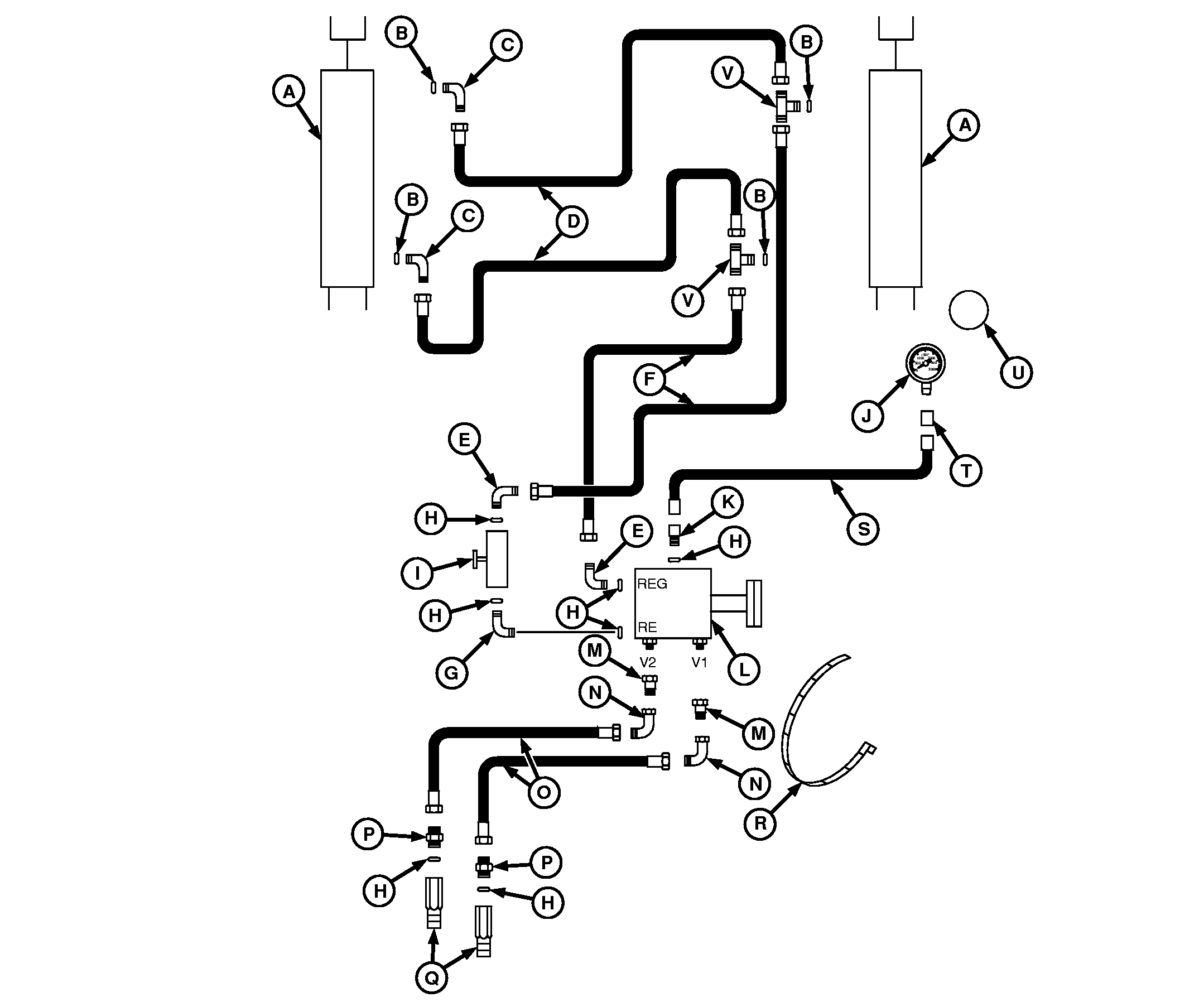

Hydraulic Down Pressure Location Drawing—6.1 m (20 ft)

A48667-UN-20FEB02

A - Cylinder (2 used)

B - O-Ring (4 used)

C - Elbow Fitting (2 used)

D - Hose, 6 mm x 3378 mm 1/4 x 133 in. (2 used)

E - Elbow Fitting (2 used)

F - Hose, 1778 mm (70 in.) (2 used)

G - Elbow Fitting

H - O-Ring (7 used)

I - Valve, Cylinder Lock

J - Gauge

K - Adapter

L - Valve, Pressure Regulating

M - Adapter Fitting (2 used)

N - Elbow Fitting (2 used)

O - Hose, 5080 mm (200 in.) (2 used)

P - Adapter Fitting (2 used)

Q - Coupler (2 used)

R - Plastic Tie (4 used)

S - Hose, 559 mm (22 in.)

T - Coupler

U - Gauge Decal

V - Tee Fitting (2 used)
