Center Closing Wheels

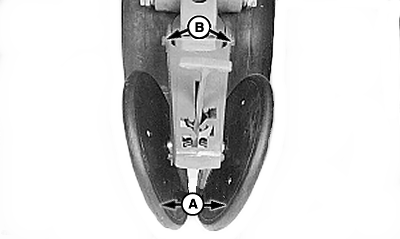

A46773
A46773-UN-12OCT00

A - Closing Wheels

B - Cap Screws

If closing wheels (A) are not centered over seed furrow, proceed as follows:

  1. Raise machine.

  2. Loosen cap screws (B) and adjust closing wheels to right or left. Visually center as required.

  3. Tighten cap screws (B).

AG,OUO6074,1204-19-20070808
