Seed Tubes

A46559-UN-23AUG00

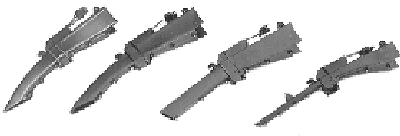

Seed Tubes

Large curved seed tubes are recommended for planting large edible beans, large peanuts, and other large seeds.

Regular curved seed tubes are recommended for planting acid-delinted cotton, corn, soybeans, sorghum, small edible beans, sugar beets and other small seeds.

Regular straight seed tube plants the same seeds as the regular curved seed tube except it deposits the seed closer to the opener. It is recommended in light, sandy soils which tend to close quickly behind the opener or when planting small, light seeds.

Small straight seed tube is for small seeds such as sorghum. Used with the small seed tube runner it provides better depth control in light, fluffy soils.

All seed tubes have snap-in tabs for quick seed tube placement.

To Remove, see INSTALL AND REMOVE NON-STANDARD SEED TUBES or INSTALL AND REMOVE FLUSH FACE SEED TUBES in Service and Adjustments section.
