Filling MaxEmerge™XP Seed Hoppers

CAUTION: When transporting machine on roadways, all product tanks must be empty.

Follow chemical manufacturer's precautions when handling parts coated with seed treatments. Use proper skin, eye, and respiratory protection.

IMPORTANT: Replace hopper lids after hoppers have been filled. If lids are left off, dust and dirt can accumulate in seed metering mechanism, causing excessive wear.

A52079
A52079-UN-24MAR03

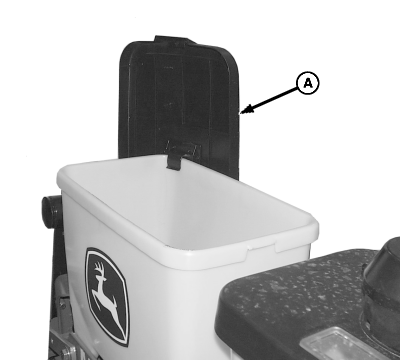

58 L (1.6 bu) Seed Hopper

A - Lid

If using 58 L (1.6 bu) hoppers, remove lid (A) and latch it to front of hopper.

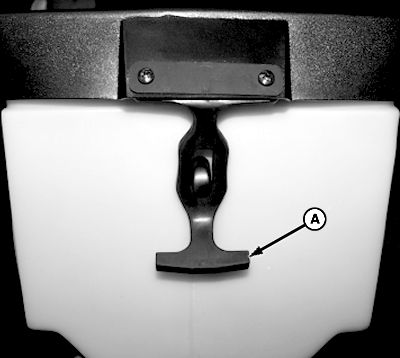

A48634
A48634-UN-31JAN02

106 L (3 bu) Seed Hopper

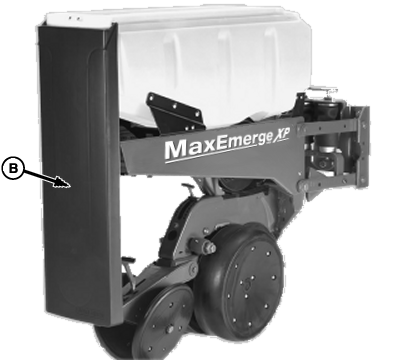

A54038
A54038-UN-09MAR04

106 L (3 bu) Seed Hopper

A - Rubber Strap

B - Lid

If using 106 L (3 bu) hoppers, unlatch rubber strap (A) and lift lid (B) up and back to slide lid rearward. Tabs on front of lid hold lid in place while filling hopper.

IMPORTANT: Apply seed treatment to seed BEFORE applying talc lubricant to insure that treatment adheres to seed properly while minimizing buildup on meter components. If buildup of treatment still occurs, contact the chemical manufacturer for assistance.

Remove any buildup of trash, dust, or seed treatment from bottom of hopper and seed meter before filling hopper with seed.

For more information, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

LD45720,00001B0-19-20090331
