Disengage Meter Drive

  1. A62348
    A62348-UN-27MAR08

    Unlock Symbol Up

    A49899
    A49899-UN-03DEC02

    A62347
    A62347-UN-27MAR08

    Lock Symbol Up

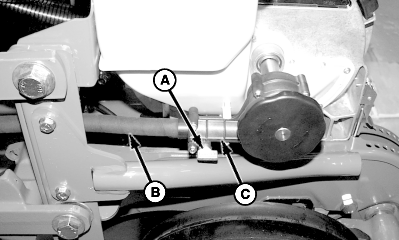

    A - Lock Pin

    B - Cable

    C - Gearbox Housing

    Rotate lock pin (A) 180 degrees until the “unlocked” symbol is on top.


  2. Pull Pro-Shaft Drive cable (B) approximately 38 mm (1.5 in.) from gearbox housing (C).

  3. Rotate lock pin (A) 180 degrees until the “locked” symbol is on top.

OUO6045,000000E-19-20090414
