Engage Meter Drive

1.
   A62348-UN-27MAR08

   Unlock Symbol Up


   A51027-UN-04DEC02


   A62347-UN-27MAR08

   Lock Symbol Up

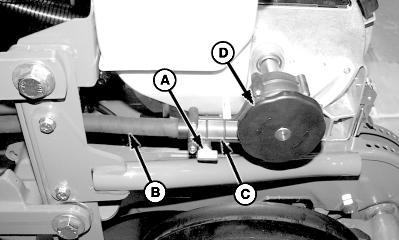

   A - Lock Pin

   B - Cable

   C - Gearbox Housing

   D - Meter Drive Handle

   Rotate lock pin (A) 180 degrees until the “unlocked” symbol is on top.

---




2. NOTE: If Pro-Shaft Drive cable will not slide into housing, rotate meter drive handle (D) until cable slides into gearbox.

   Push Pro-Shaft Drive cable (B) into gearbox housing (C).

3. Rotate lock pin (A) 180 degrees until the “locked” symbol is on top.
