Remove Seed Disk

1.

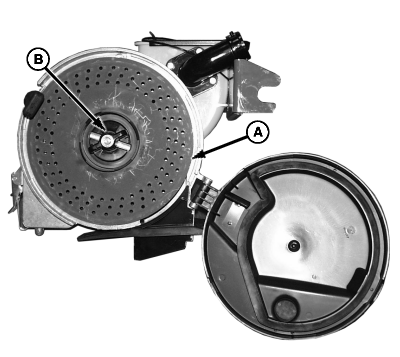

   A64538-UN-08APR09

   A - Seed Disk

   B - Hub Handle

   Open vacuum meter. See ACCESSING THE VACUUM METER in this section.

---




2. Rotate hub handle (B) until it aligns with slots in seed disk (A).

3. Pull seed disk from hub.
