Inspect Row Command™ Drive Chains and Sprockets

1.
   A66016-UN-09DEC09


   A66017-UN-09DEC09

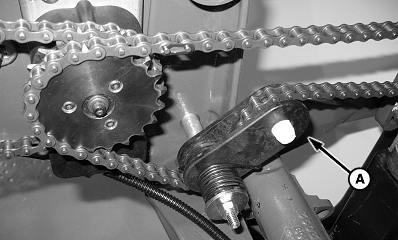

   A - Tensioner Block

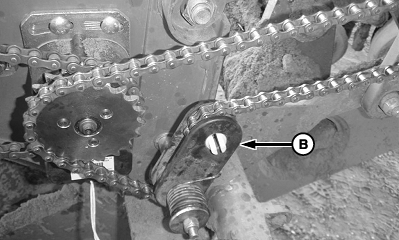

   B - Tensioner Block

   For quick reference, when new chains are installed, tensioner block (A) is in position shown.

   When chains have been in service for a season, tensioner block (B) can be more vertical as shown.

   A vertical tensioner is an indication to remove links or replace chain.

---




2.
   A66015-UN-09DEC09

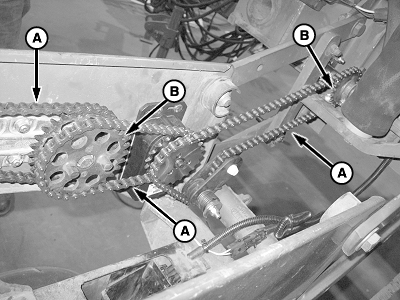

   A - Chains

   B - Sprockets

   Inspect all chains (A) and sprockets (B) for wear and damage. Replace as needed.

---
