Brush Installation

1.
   A53448-UN-05DEC03


   A53449-UN-05DEC03


   A53450-UN-05DEC03

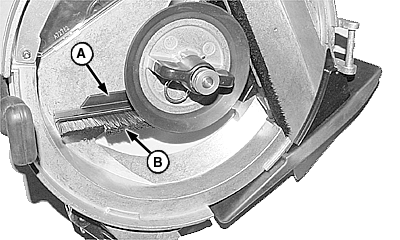

   A - Brush Holder

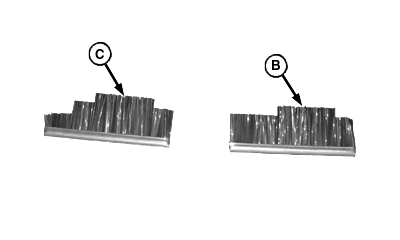

   B - Single Notch Brush

   C - Double Notch Brush

   Open vacuum meter and remove seed disk.

---

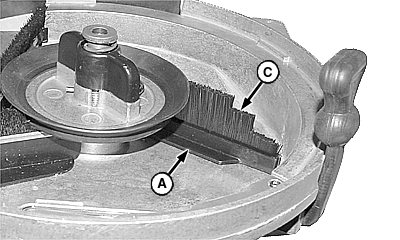

2. Firmly hold brush holder (A) against meter housing with one hand while pulling brush from holder with other hand.

3. NOTE: Install brush (C) so it contacts outside of meter housing.

   Install appropriate brush.

   • Install single notch brush (B) when double eliminator is NOT used.
   • Install double notch brush (C) when double eliminator IS used.
