Install Seed Disk

1.

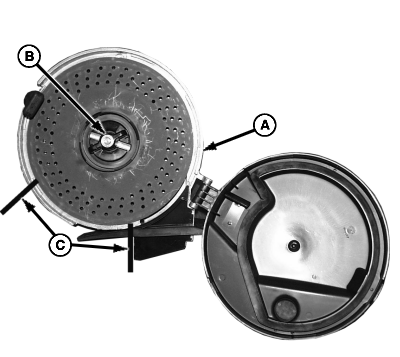

   A51177-UN-19NOV02

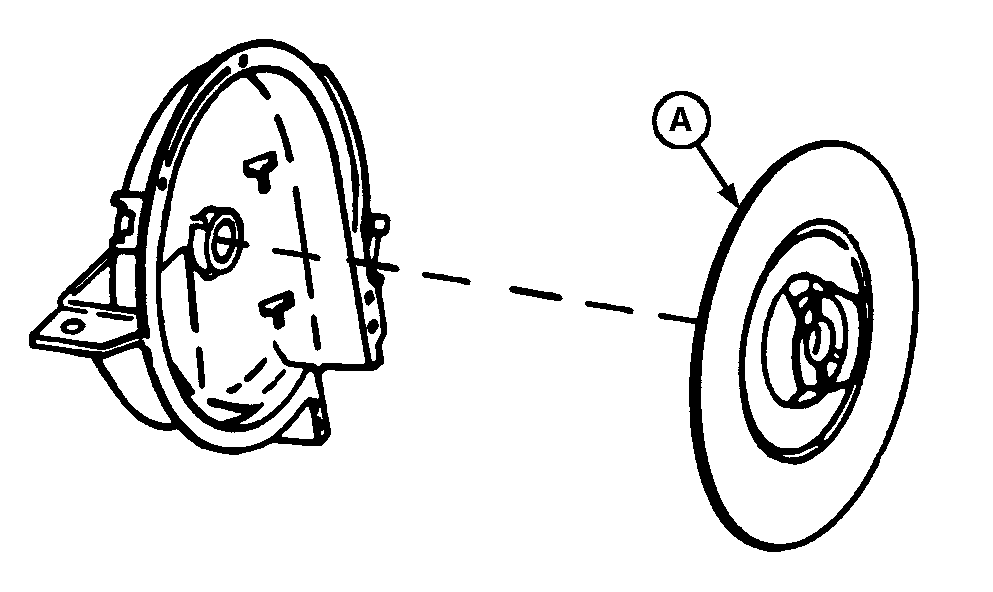

   A46247-UN-13JUN00

   A - Seed Disk

   B - Hub Handle

   C - Section

   Open vacuum meter.

---




2. Fit seed disk (A) into housing. Hold seed disk stationary and rotate hub handle (B) into locked position.

3. Inspect hub adjustment. See ADJUST METER HUB in this section if the following conditions are not met.

   □  Verify that the seed disk (A) continues to rotate approximately 1 revolution after the hub is spun rapidly by hand and quickly released.

   □  Verify that there is light contact between disk and meter housing in section (C) as disk is rotated.

   □  Verify that no seed loss occurs through any gap in section (C) as disk is rotated.
