Meter Settings

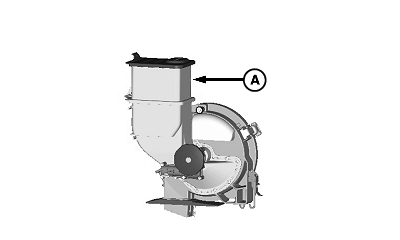

A60365-UN-27JUN07
A - Mini Hopper Extension
Crop and disk variations require different brush and double eliminator setup. See following table and DOUBLE ELIMINATOR OPERATION or CHANGE VACUMETER BRUSH in this section.John Deere flat disks meter a wide variety of seed sizes and shapes that are non-approved crops for the CCS system. Pro-Series XP™ mini hopper extensions (A) are available through Service Parts to aid in planting crops non-approved for the CCS system.
|
Crop |
Disk |
Single Notch Brush |
Double Notch Brush |
Double Eliminator Used |
Knockout Wheel |
|---|---|---|---|---|---|
|
Corn |
Corn |
Yes |
No |
No |
No |
|
Corn |
ProMax 40 |
No |
Yes |
Yes1 |
Yes |
|
Sweet Corn |
ProMax 40 or Small Sweet Corn |
No |
Yes |
Yes1 |
Yes |
|
Popcorn |
Sunflower, Popcorn, or Sorghum |
Yes |
No |
No |
No |
|
Oil Sunflower |
Sunflower or Popcorn |
Yes |
No |
No |
No |
|
Confectionary Sunflower |
ProMax 40 or Small Sweet Corn |
No |
Yes |
Yes1 |
Yes |
|
Cotton |
Delinted or Hilldrop Cotton |
Yes |
No |
No |
No |
|
Cotton |
Flat Type Edible Bean |
No |
Yes |
Yes2 |
Yes |
|
Soybeans |
Soybean or Cotton |
Yes |
No |
No |
No |
|
Sorghum or Sugar Beet |
Sorghum or Sugar Beet |
Yes |
No |
No |
Yes |
|
Pro-Series XP is a trademark of Deere & Company 1 Use A85131 plate when using double eliminator. 2 Use A85715 plate when using double eliminator. |
OUO6045,0000708-19-20100714 |
