Detach Machine

1. CAUTION: Tongue can whip upward when hitch pin is removed. TO AVOID BODILY INJURY, always fold machine and relieve load on hitch before removing pin.

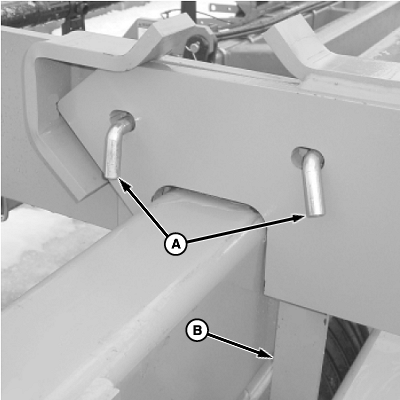

   A67353-UN-28JUN10

   A - Pins

   B - U-Bracket

   Fold machine. See UNFOLD AND FOLD PLANTERS in Operate Machine section.

---




2. Install U-bracket (B) as shown between wing latch plates and secure with pins (A).

3. Install cylinder service locks on mainframe wheels.

4. Lower machine on service locks.

5. Lower wing wheels until they touch the ground and tongue raises off drawbar.

6. Remove safety chain and hitch pin.

7. Remove all hoses and harnesses.
