Unfold and Fold Planters (Non-Fold Assist Machines)

NOTE: These steps are based on the planter hydraulic system connected as recommended. See HYDRAULIC CONNECTIONS RECOMMENDATIONS in Attach Machine section.

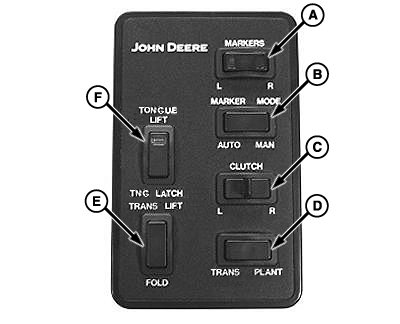

A50678-UN-15OCT02

A64952-UN-08JUL09

Center Frame Wheels

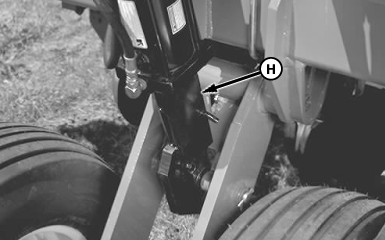

A64953-UN-08JUL09

Wing Wheels

A - Markers

B - Marker Mode

C - Clutch

D - Trans-Plant

E - Trans Lift-Fold

F - Tongue Lift-Tongue Latch

G - Service Lock, Center Frame

H - Service Lock, Wing

1. Press PLANT-TRANS switch to TRANS.

2. Hold TRANS LIFT switch while activating SCV II to lower machine from transport.

3. Hold TRANS LIFT switch while activating SCV I to lower wing wheels.

4. Hold TONGUE LIFT switch while activating SCV II to lower tongue until wing arms are unlocked.

5. NOTE: Allow tractor to roll as planter wings are unfolded.

   Hold FOLD switch while activating SCV II to unfold machine.

6. Hold TONGUE LATCH switch while activating SCV II to lock hitch latch.

7. To service, install center frame service locks (G) and wing service locks (H).

Fold Machine:

1. Press PLANT-TRANS switch to PLANT. Activate SCV I to raise machine.

2. Press PLANT-TRANS switch to TRANS.

3. Hold TONGUE LATCH switch while activating SCV II to disengage hitch latch.

4. NOTE: Allow tractor to roll as planter wings are folded.

   Hold FOLD switch while activating SCV II to fold machine.

5. Hold TONGUE LIFT switch while activating SCV II to raise tongue until wing arms are locked over hitch.

6. Hold TRANS LIFT switch while activating SCV I to raise wing wheels until they contact each other.

7. Hold TRANS LIFT switch while activating SCV II to raise machine into transport position.
