Level Hitch Tube

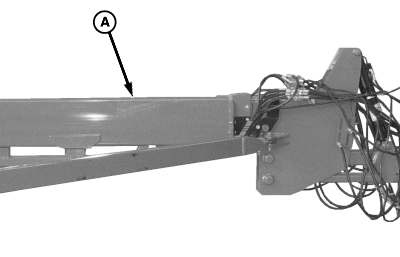

A68031
A68031-UN-02JUL10

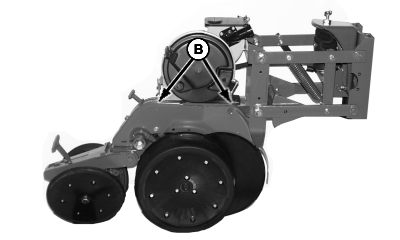

A50703
A50703-UN-16OCT02

A - Hitch Tube

B - Planting Unit Frame

Periodically check that hitch tube (A) and planting unit frames (B) are parallel to the ground during operation.

  1. IMPORTANT: If tractor has Category 4 drawbar, it must be used with a Category 4 clevis on planter. If tractor has Category 5 drawbar, it must be used with a Category 5 clevis on planter. (See INSTALL PROPER DRAWBAR CLEVIS.)

    NOTE: Adjustments are more accurate when performed in field conditions.

    NOTE: If center frame of machine is higher or lower than wings, rephase hydraulic lift system. Raise machine and hold SCV lever for several seconds to rephase. If center frame on machine is lower than wings after rephasing see ADJUST MAIN FRAME HEIGHT in Service section.

    Set adjustable down force system to zero pressure.

  2. Lower machine on level ground.

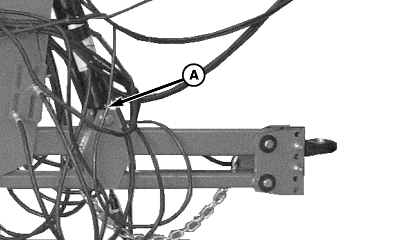

  3. A68033
    A68033-UN-02JUL10

    A - Drawbar Hitch Cylinder

    Completely retract drawbar hitch cylinder (A).


  4. Raise and lower machine.

  5. Verify hitch tube is parallel with ground. If hitch is not parallel, proceed with remaining steps.

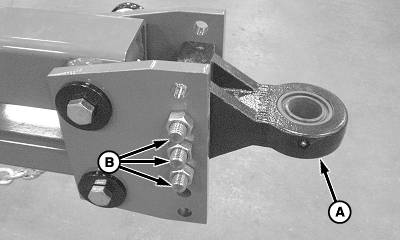

  6. A71353
    A71353-UN-27APR11

    A - Clevis

    B - Cap Screws, Clevis

    Place planter in parking position, see Detach Planter section. Disconnect clevis from tractor.


  7. NOTE: Turn clevis over for minor adjustment. Move clevis to a new hole for major adjustment.

    Reposition clevis (A) so hitch becomes parallel to ground when reattached to tractor.

  8. IMPORTANT: Cap screws must be tightened before load is placed on hitch to obtain accurate torque values.

    Tighten clevis cap screws (B) to specification.

    ItemMeasurementSpecification
    Cap Screws
    ClevisTorque1150 N·m (850 lb.-ft.)

  9. Attach tractor to drawbar, unfold planter and put in plant position, retract drawbar cylinder completely.

  10. Verify entire length of hitch tube is parallel with ground. If hitch is not parallel, reposition and tighten clevis until hitch tube is parallel.

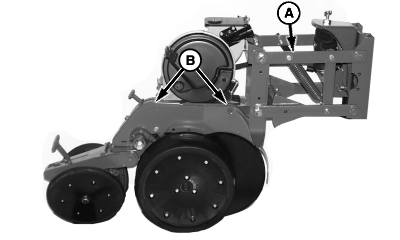

  11. A68213
    A68213-UN-16JUL10

    A - Parallel Arms

    B - Planting Unit Frames

    Periodically check that hitch tube (A) and planting unit frames (B) are parallel to the ground during operation.

    If center frame of machine becomes higher or lower than wings during operation, rephase hydraulic lift system.

OUO6064,0000479-19-20110427
