Adjust Wing Frame Height
NOTE: Soil conditions affect frame height. Wing wheels can be adjusted differently than the center frame wheels due to varying attachments and frame configurations.

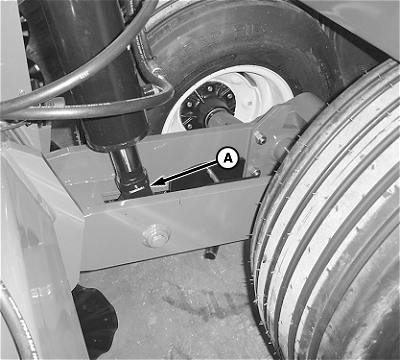

A68164-UN-13JUL10
A - Clevis
Adjust threaded clevis (A) on rod end of wing wheel cylinder for additional wing frame height.|
