Replacing Pro-Series™XP Meter Shear Handle

A57648
A57648-UN-13MAR06

A57649
A57649-UN-13MAR06

A57650
A57650-UN-13MAR06

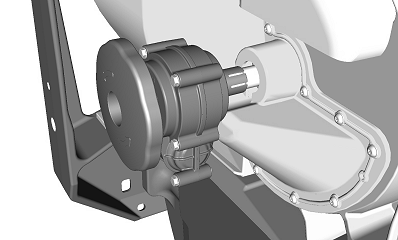

Assembled

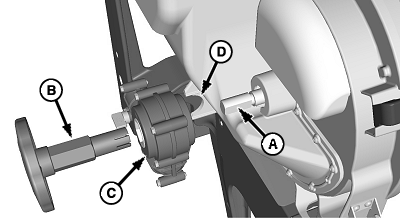

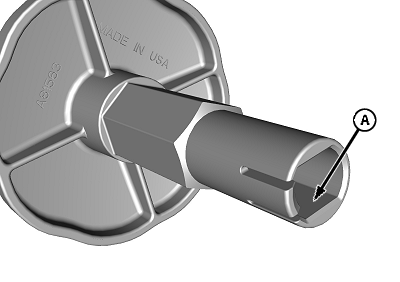

A - Flat Surfaces, Aligned

B - New Handle

C - Gearbox

D - Cutout

Infrequent or improper lubrication causes “binding” of moving parts within the machine. This “binding” can cause the shear points to fail, preventing breakage of machine parts. Other common causes of binding include compaction of field residue on row unit drives, jammed or misaligned seed meters.

If meter handle breaks; remove broken pieces, align flat surfaces (A) and insert new handle (B) through gearbox (C) until handle snaps into groove on shaft. Gearbox must seat into cutout (D).

NOTE:

A60239
A60239-UN-18JUN07

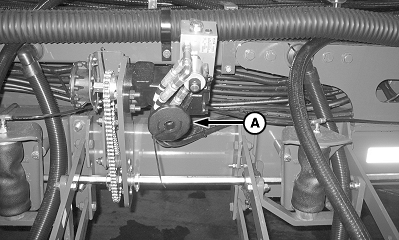

A - Replacement Meter Handle

A replacement meter handle (A) is located near the variable rate drive motors.
