Checking Seed Population

1. NOTE: When planting at a shallow depth with the closing wheels raised, seeds can roll or bounce and can affect seed spacing accuracy.

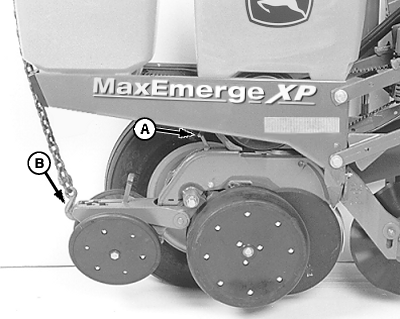

   A54050-UN-11MAR04

   MaxEmerge Row Unit

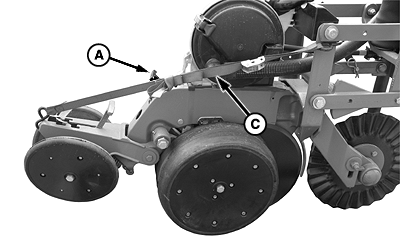

   A64888-UN-12JUN09

   Pro Row Unit

   A - Depth-Adjusting Handle

   B - Chain

   C - Ratchet Strap

   On MaxEmerge row units attach chain (B) as shown to one or more sets of closing wheels, so seed trench remains open.

   On Pro Series row units attach ratchet strap (C) as shown to one or more sets of closing wheels, so seed trench remains open.

---




2. Set depth-adjusting handle (A) two settings from minimum setting.

3. Plant a short distance and check to see if seeds are visible in trench. Adjust depth-adjusting handle if necessary.

4. Plant approximately 91 m (100 yd.).

5. Consult rate charts. Determine what distance equals 1/1000 of a hectare, 1/1000 of an acre or 1/200 of an acre as it relates to the row width being planted.

   Distance to Plant for Population Check
   	Row Width Being Planted
   Fraction of Acre	15 in.	18 in.	19 in.	20 in.	22 in.	30 in.	36 in.	38 in.	40 in.
   1/1000 if population is more than 100 000 seeds/acre	34.8 ft.	24.0 ft.	27.6 ft.	26.1 ft.	23.8 ft.	17.4 ft.	14.5 ft.	13.8 ft.	13.1 ft.
   1/200 if population is less than 100 000 seeds/acre	174 ft.	145 ft.	138 ft.	131 ft.	119 ft.	87 ft.	72.5 ft.	69 ft.	66 ft.

   Distance to Plant for Population Check
   	Row Width Being Planted
   Fraction of Hectare	38 cm	46 cm	48 cm	51 cm	56 cm	70 cm	76 cm	91 cm	97 cm	101 cm
   1/1000	26.24 m	21.88 m	20.72 m	19.68 m	17.90 m	14.29 m	13.12 m	10.94 m	10.36 m	9.84 m

6.

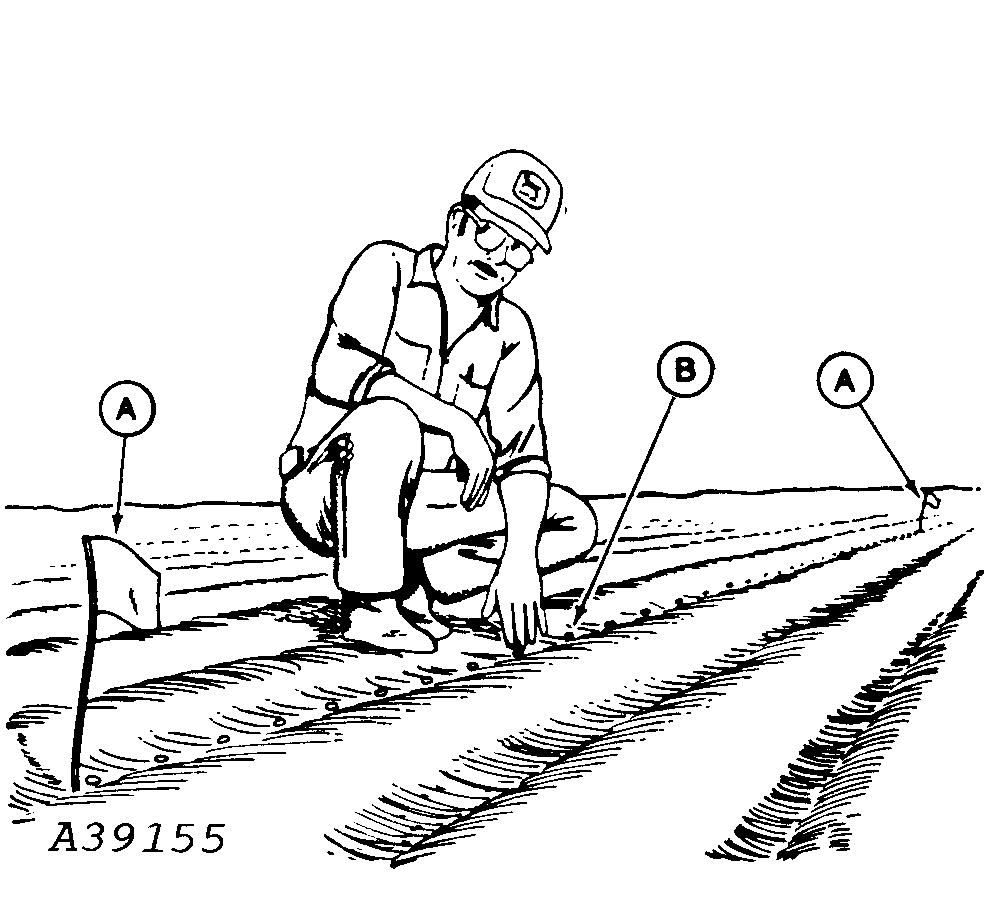

   A39155-UN-13FEB96

   A - Flag

   B - Seeds

   Mark distance selected with flags (A).

---




7. NOTE: When planting with little depth and with closing wheels raised, seeds tend to roll or jump. Precision of seed spacing is affected.

   Count the seeds (B) between markers.

FOR VACUUM METER ONLY:

If all settings are correct and population is high, reduce vacuum level by units of 1 inch until correct population is reached. If the real population is low, increase vacuum level by half to 1 inch jumps until correct population is reached.
