Adjust Main Frame Height

NOTE: Soil conditions affect frame height. Wing wheels can be adjusted differently than the center frame wheels due to varying attachments and frame configurations.

A71633
A71633-UN-23MAY11

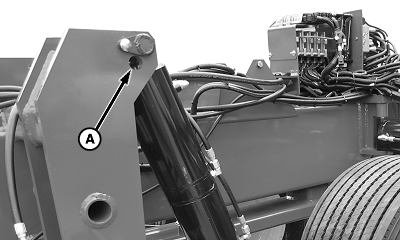

A - Hole

To increase main frame height in conditions where main frame is lower than wings move top transport cylinder pin to hole (A).
